    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Heat Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V, 220V/380V
    Power:2.2 KW
    Dimension(L*W*H):L4700*W600*H700/2500 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2021
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):800 kg
    Belt Width:600mm
    Belt Material:anti-skiding green PVC belt
    Front Tongue:4.2m powered roller
    Adjustable Speed:10-20m/min
    Adjustable Height:700-2500mm
    Motor Power:1.5kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:6" heavy duty swivel lockable PU casters
    Packing Size:L4900*W1240*H1625mm
    Video Description
    Product Overview

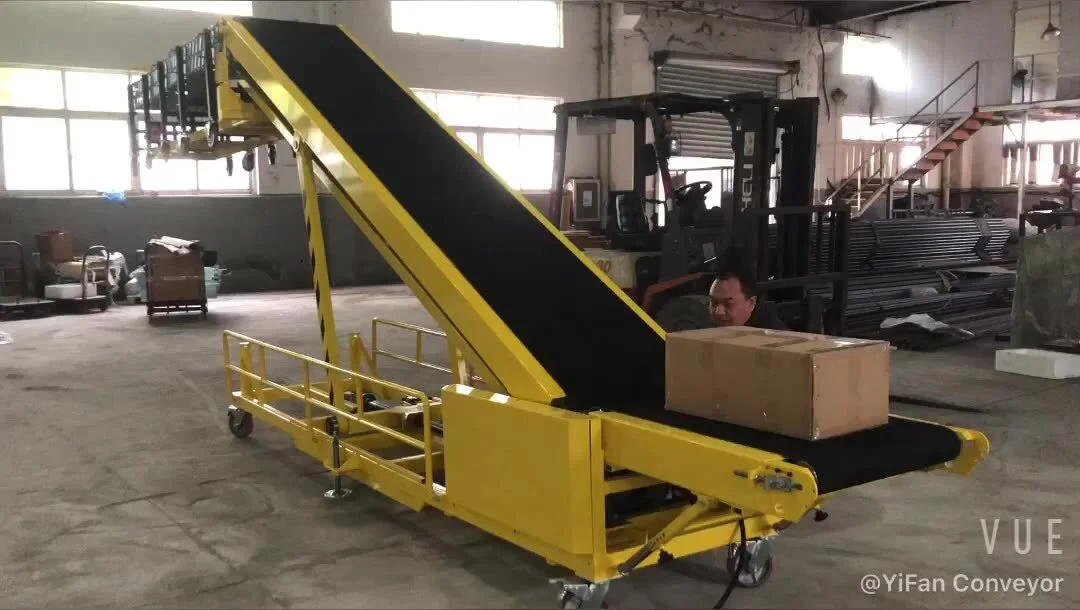

    TRUCK LOADING CONVEYOR (TLC-P600)

    Automatic trailer,van,truck,container loading and unloading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.The Truck Loading Conveyor is consist of two parts: Front Flexible Tongue and Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 8
    Part 1 4.2m extendable powered roller conveyor 700-1000mm adjustable height 10-18m/min adjustable speed independent control box two way operation Part 2 Inclined Belt Conveyor 700-2500mm adjustable height loading & unloading 10-20m/min adjustable speed 50kg/m load capacity
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 10
    Front Elevation
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 12
    Left elevation
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 14
    Right Elevation
    Technical Parameters
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 16
    Model
    Belt Width(mm)
    L1(mm)
    L2(mm)
    L3(mm)
    L(mm)
    H1(mm)
    H2(mm)
    TLC-P600
    600
    900
    3700
    2000
    4200
    700
    700-2500
    TLC-P800
    800
    900
    3700
    2000
    4200
    700
    700-2500
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 18
    Details Images
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 20





    Control Panel
    OFF/ON, Power, Abnormal, Transition, Forward/Up, Stop, Reverse/Down, Emergency Stop,Speed Kob buttons
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 22




    Anti-skiding PVC belt
    600mm width
    5mm thickness
    rough top
    PVC material
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 24




    Easy Set Up
    Flexible conveyor bracket and main conveyor are joint by screws. It can be removed quickly when not need.
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 26




    Flexible powered tongue
    With 4.2m flexible powered tongue conveyor which can be extend in side the container
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 28




    Screw Lifting System
    The belt conveyor is lift up by screw system rather than hydraulic.
    Packing and Shipping
    One 20ft container can load 2nos of TLC-P600
    One 40ft container can load 4nos of TLC-P600
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 30
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 32
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 34
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 36
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 38
    Successful Project

    2012 Project In Mombasa,Kenya

    Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 40
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 42
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 44
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 46

    2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

    We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 48
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 50
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 52
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 54

    2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

    Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 56
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 58
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 60
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 62

    2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

    Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 64
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 66
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 68
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 70

    2016 Project In Kenya Cartons loading unloading container/trucks/trailers

    Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 72
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 74
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 76
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 78

    2016 Project In Kenya Bags stacking mobile belt conveyor

    Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 80
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 82
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 84
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 86
    Company Profile
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 88
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 90
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 92
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 94
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 96
    Automat Container Bag Load Conveyor Mobile Belt Conveyors 98
    The product is an integral part of people's daily life. It has greatly increased production efficiency and lowered the burden on operators. The rugged and heavy-duty self-tracking skate wheels can ensure a smooth conveying. The application of this high-tech product reduces the number of unskilled workers required in the production process. In addition, it enhances production efficiency. The rugged and heavy-duty self-tracking skate wheels can ensure a smooth conveying.
