Assembly Belt Conveyor
CBLC-600
ASSEMBLY BELT CONVEYOR

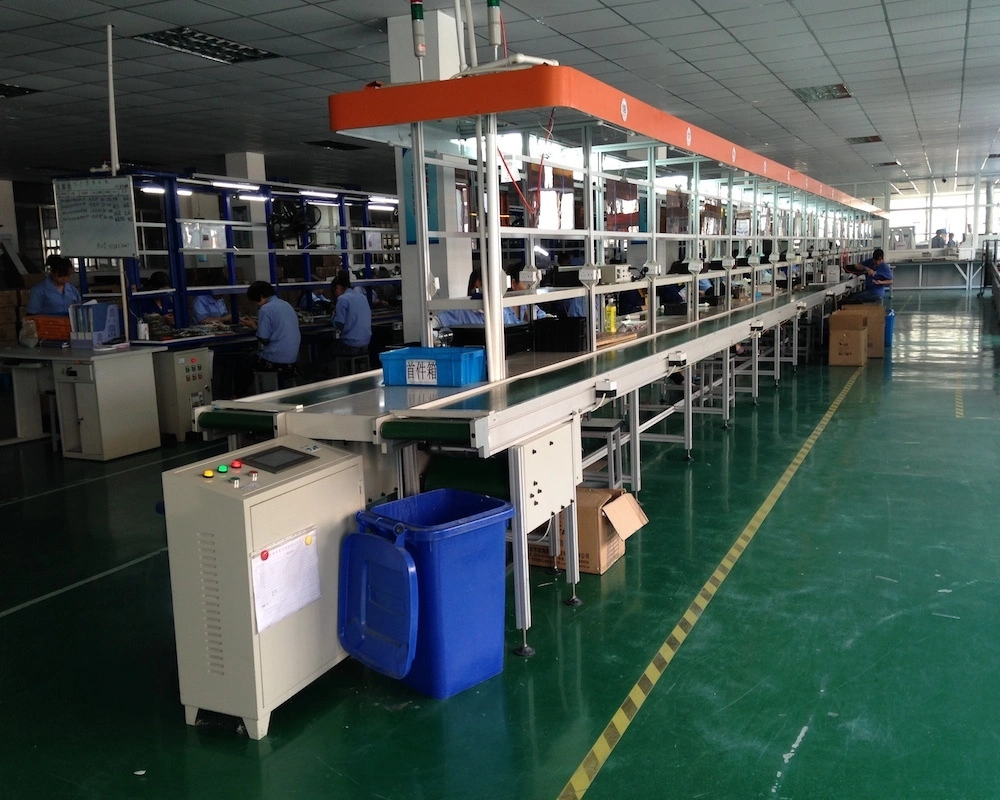

Assembly Belt Conveyor consists of two 300mm wide Aluminum PVC belt conveyor. In the middle of two belt conveyors, there are two working tables, some sockets & tools in second levels, lights above the shelves. The whole assembly line is controlled by one main electrical box and can be automatically start and stop. There are also OFF/ON button beside each working section. We can also supply other customized assembly line as per your special requirements.
PRODUCT PARAMETERS
Belt Width | 300mm-800mm |
Conveyor Length | 1m-20m |
Variable Speed | 10-20m/min |
Direction | Forward and reverse |
Motor Power | 0.4/0.75/1.5/2.2kw |
Load Capacity | 5-20kg/m |
Frequency Inverter | Delta |
Voltage | 220V/380V |
SHOW DETAILS
Application 1
