    FPR-PU

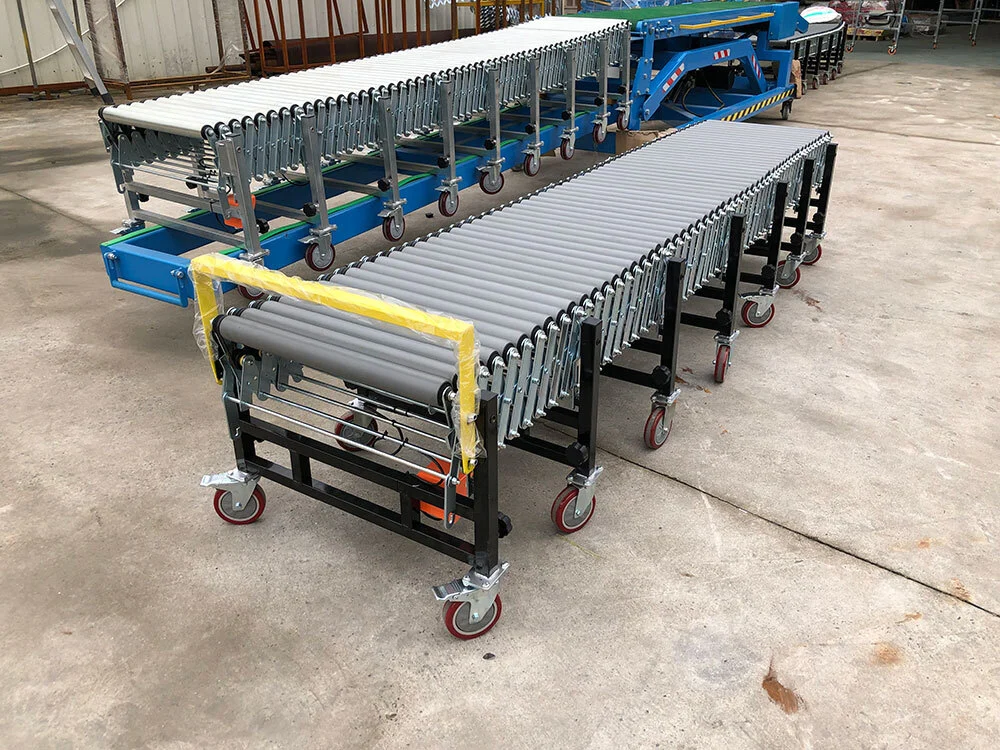

    FLEXIBLE POWERED PU SLEEVED ROLLER CONVEYOR

    Flexible Powered Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height. Having enough power supply by one mini motor per section, it is well qualified to intensively transport goods especially with flat bottom in the warehouse/storehouse, workshop, factory, harbor, dock, etc. In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line. It satisfies the easy, quick and efficient goods delivery.

    PRODUCT PARAMETERS

    Belt

    high quality V belt

    Roller

    Dia 50mm PU sleeved roller, Max. gap 130mm center to center

    Motor

    90W  motor

    Frame

    3.5mm thickness galvanized curved join plates with better load

    Leg

    32×32 powder coated tube with 25×25 galvanized tube inside

    Caster

    Dia 125mm high quality swivel lockable polyurethane casters

    Control Box

    Forward/Stop/Reverse

    Inversor de frecuencia

    Delta

    MODEL LIST

    Modelo

    Open Length

    (mm)

    Close Length

    (mm)

    Ancho

    (mm)

    AdjustableHeight

    (mm)

    VariableSpeed

    (m/min)

    Max.Load

    (kg/㎡)

    Potencia del motor

    (w)

    FPR-PU4.8

    4800

    2040

    600,800

    600-800

    10-20

    50

    360

    FPR- PU 6

    6000

    2550

    600,800

    600-800

    10-20

    50

    450

    FPR- PU 7.2

    7200

    3060

    600,800

    600-800

    10-20

    50

    540

    FPR- PU 8.4

    8400

    3570

    600,800

    600-800

    10-20

    50

    630

    FPR- PU9.6

    9600

    4080

    600,800

    600-800

    10-20

    50

    720

    FPR- PU10.8

    10800

    4590

    600,800

    600-800

    10-20

    50

    810

    FPR- PU12

    12000

    5100

    600,800

    600-800

    10-20

    50

    900

    FPR- PU13.2

    13200

    5610

    600,800

    600-800

    10-20

    50

    990

    FPR- PU14.4

    14400

    6120

    600,800

    600-800

    10-20

    50

    1080

    FPR- PU15.6

    15600

    6630

    600,800

    600-800

    10-20

    50

    1170

    FPR- PU16.8

    16800

    7140

    600,800

    600-800

    10-20

    50

    1260

    FPR- PU 18

    18000

    7650

    600,800

    600-800

    10-20

    50

    1350

    FPR- PU19.2

    19200

    8160

    600,800

    600-800

    10-20

    50

    1440

    FPR- PU20.4

    20400

    8670

    600,800

    600-800

    10-20

    50

    1530

    SHOW DETAILS

    PU Sleeved Roller Conveyor for 25KG Rice Bags loading into trucks,trailers,vans 7
    Curved side links with nice load capacity
    PU Sleeved Roller Conveyor for 25KG Rice Bags loading into trucks,trailers,vans 8
    With package end stop guard
    PU Sleeved Roller Conveyor for 25KG Rice Bags loading into trucks,trailers,vans 9
    Each section with one 90w motor to ensure enough power
    PU Sleeved Roller Conveyor for 25KG Rice Bags loading into trucks,trailers,vans 10
    Reinforced double cross supporting legs
