90 degree corner roller gravity conveyor,180 degree curve roller conveyor

这里可以自定义设置
90 degree corner roller gravity conveyor,180 degree curve roller conveyor
B站不支持收货地址
B站不支持库存规格
Type
Gravity Conveyor,Other
Load Capacity
50KG
Model Number
GRC
Lead Time
1 - 5(Sets):15(days),>5(Sets):Negotiable(days)
shipping
Sea freight
Customization
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support, Spare parts
Local Service Location:Egypt, None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Power:Other
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Bearing, Roller
Roller Diameter:50mm
Roller Material:carbon steel,galvanized
Frame Material:carbon steel
Surface Treatment:powder coated
Castor Diameter:120mm
Roller Pitches:100mm
Roller Width:600mm
Conveyor Height:700mm
Conveyor Length:3000mm
Video Description
Product Overview

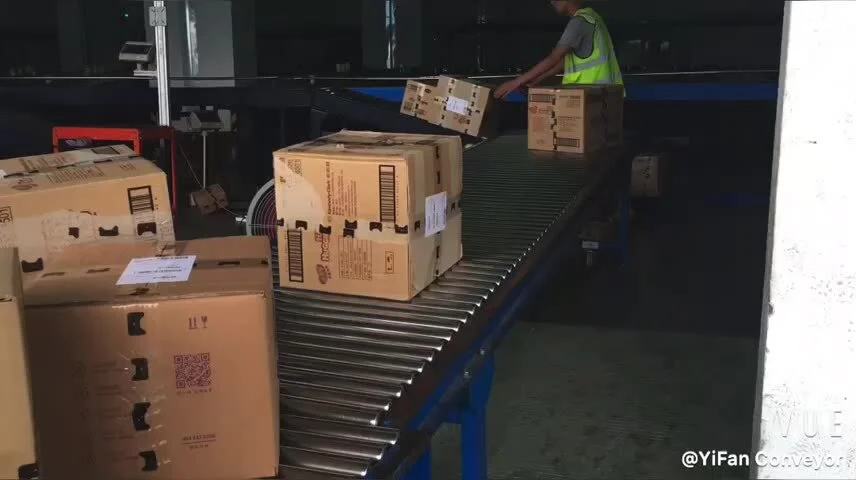

Inflexible Gravity Roller Conveyor is one of the most common conveyors applied in conveying flat-bottomed items like cases, boxes and pallets. Small, soft or irregular items are supposed to put on trays or other flat containers. This kind of conveyor is characterized with large and efficient distribution, convenient connection to other lines and easy maintenance. Optional Frame Material: carbon steel (standard), stainless steel, Aluminum, etc. Optional Roller Material: zinc-plated steel
(standard),chrome-plated steel, rubber-coated steel, stainless steel, Aluminum, PVC, ABS, etc.

Technical Parameters
Conveyor Length: 1m-20m
Roller Width:300-1000mm
Height:300-2000mm
Roller Diameter:38mm,50mm,60mm
Roller Material: Zinc plated steel, stainless steel, ABS, PVC
Frame Material: Steel, Aluminum, Stainless Steel
Load Capacity:50-200kg/m
Details Image
Successful Project
Packing and Shipping
Company Profile
The product helps relieve workers' fatigue and stress because it makes work much easier and needs less labor intervention. It contributes to the highly efficient loading/unloading logistics sorting and conveying. The use of this product enables manufacturers to more focus on their core design and product development, rather than racking their brains to find a way to improve productivity. It contributes to the highly efficient loading/unloading logistics sorting and conveying.
