50KG Load O-belt Flexible Powered Roller Conveyor
5.0
Start Port:
Sea freight
Payment:
1 - 20(Sets):15(days),>20(Sets):Negotiable(days)
MOQ:
[{'sku_name': '50KG/m', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'FPR-O6', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 5 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, AC 110V/220V/380V
Power:750W
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Frequency Inverter
Roller:600*50mm galvanized steel roller
Roller Center Gap:Max.130mm
Motor:90W,Zhongda brand
Side Links:3.5mm thickness galvanized curved join plates
Adjustable Legs:32*32 outer tube with 30*30 inner tube
Adjustable Height:700-1000mm
Control Box:Forward/Stop/Reverse,Emergency Stop
Caster:5'' swivel lockable caster
Extendable Length:2300-6000mm
Video Description
Product Overview
50KG LOAD O-BELT FLEXIBLE POWERED ROLLER CONVEYOR

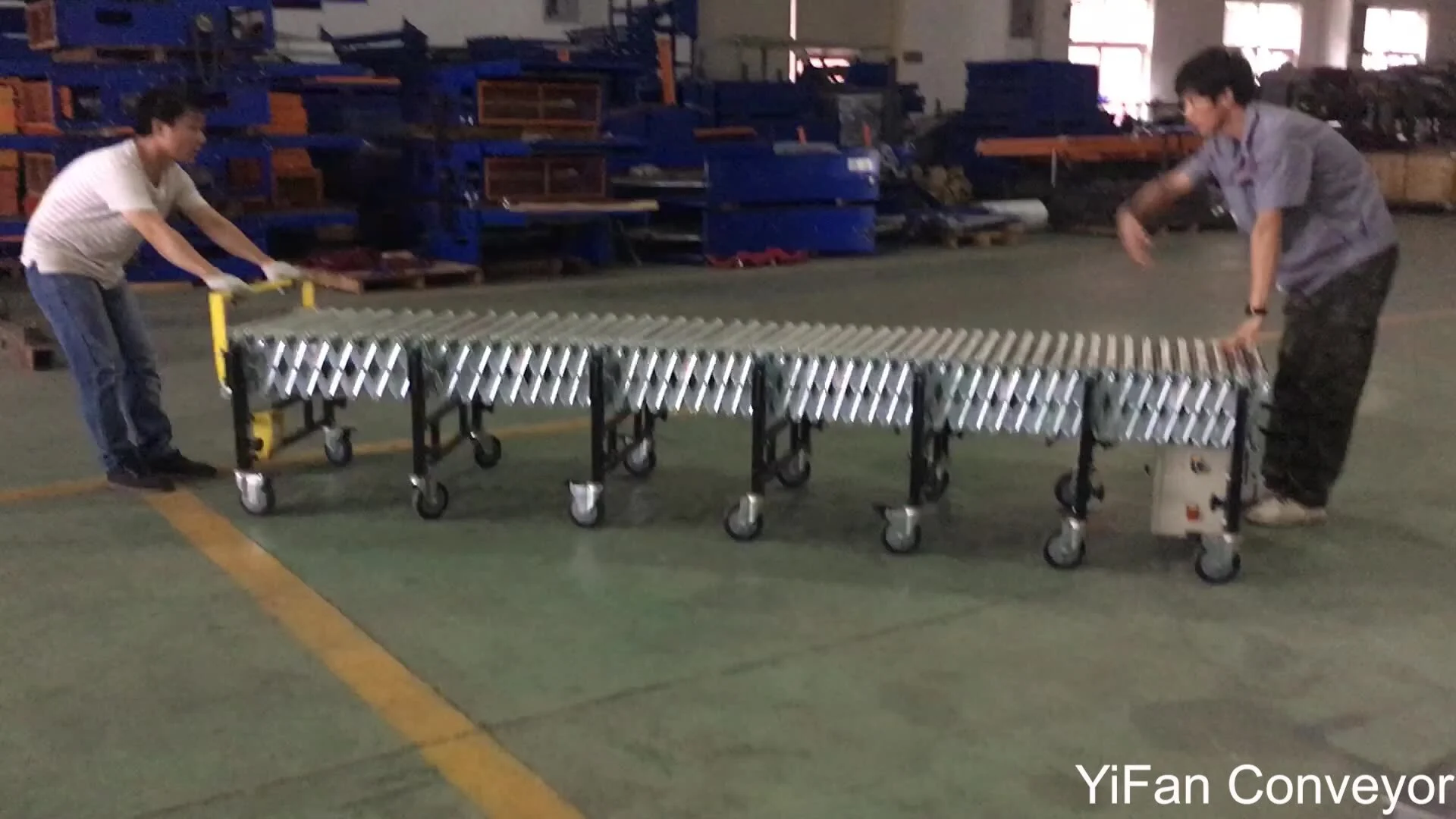

50KG Load O-belt Flexible Powered Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height.Having enough power supply by one mini motor per section, it is well qualified to internsively transport goods especially with flat bottom in the warehouse/storehouse,workshop,factory,harbor,docks,etc.
Specification
Roller Width: 600mm or 800mm
Adjustable Height: 700-1000mm
Extendable Length: 2300-6000mm
Load Capacity: 50kg/m
Control Box: Forward/Stop/Reverse,Emergency Stop
Voltage: 220V,1-Phase or 380V, 3-Phase
Motor: 90W, Zhongda brand
Caster: 5" swivel lockable casters
Side Links: 3.5mm thickness galvanized curved join plates
Close Condition
Combine with belt conveyor
Connect to loading conveyor
Model List
Model | Open Length (mm) | Close Length (mm) | Adjustable Height (mm) | Roller Width (mm) | Motor Power (w) | |||||
FPR-O6 | 6000 | 2300 | 700-1000 | 600,800 | 450 | |||||
FPR-O7.2 | 7200 | 2760 | 700-1000 | 600,800 | 540 | |||||
FPR-O8.4 | 8400 | 3220 | 700-1000 | 600,800 | 630 | |||||
FPR-O9.6 | 9600 | 3680 | 700-1000 | 600,800 | 720 | |||||
FPR-O10.8 | 10800 | 4140 | 700-1000 | 600,800 | 810 | |||||
FPR-O12 | 12000 | 4600 | 700-1000 | 600,800 | 900 | |||||
FPR-O13.2 | 13200 | 5060 | 700-1000 | 600,800 | 990 | |||||
FPR-O14.4 | 14400 | 5520 | 700-1000 | 600,800 | 1080 | |||||
FPR-O15.6 | 15600 | 5980 | 700-1000 | 600,800 | 1170 | |||||
FPR-O16.8 | 16800 | 6440 | 700-1000 | 600,800 | 1260 | |||||
FPR-O18 | 18000 | 6500 | 700-1000 | 600,800 | 1350 | |||||
FPR-O19.2 | 19200 | 6960 | 700-1000 | 600,800 | 1440 | |||||
FPR-O20.4 | 20400 | 7420 | 700-1000 | 600,800 | 1530 | |||||
PS: for length above 10m, we make the conveyor into to parts which joint together by hooks and air plug. | ||||||||||
Details Images
90W Zhongda motor
Control box with Fwd/Stop/Rev switch
Speed is adjustable by frequency inverter
Mobile on 5" swivel casters
50mm galvanized steel rollers driven by O belt
Conveyor height adjustable from 700mm to 1000mm
Easy to take a 180 degree curve
3.5mm thick reinforced side links
With handle on the legs to help move the conveyor around
Application
Packing and Shipping
How to choose YiFan's FPR ?
Other Options
We can provide various kinds of flexible powered roller conveyor with different rollers material and structure
FPR-O with rubber coated rollers
FPR-O with PU coated rollers
FPR-RV with rubber coated rollers
FPR-O with side guide wheels
FPR-O with side stainless steel 201 rollers
FPR-O with stainless steel 304 rollers
How to joint 2 or more units together
Two or more YiFan's flexible powered roller conveyor can joint together quickly and easily by hoos and air plug
