50KG Load Medium Duty Flexible Gravity Steel Roller Conveyor-YiFan Conveyor

Overview

Quick Details

Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company

After Warranty Service:Video technical support, Online support

Local Service Location:None

Showroom Location:None

Condition:New

Material:Carbon Steel

Material Feature:Fire Resistant

Structure:Roller Conveyor

Place of Origin:Zhejiang, China

Brand Name:YiFan

Power:no power

Dimension(L*W*H):L6900*W600*H700/1000 mm

Warranty:1 Year

After-sales Service Provided:Free spare parts

Width or Diameter:600mm

Machinery Test Report:Not Available

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2020

Warranty of core components:1 Year

Core Components:Roller

Extendable Length:2960-6900mm

Effective Width:600mm

Adjustable Height:700-1000mm

Load Capacity:50kg/m

Roller Diameter:50mm

Roller Material:Galvanized Steel Rollers

Roller Center Gap:Max.120mm

Side Frame:2.5mm thickness steel plates

Supporting Legs:galvanized round steel tubes

Caster:4'' swivel lockable caster

Video Description

Product Overview

50KG Load Medium Duty Flexible Gravity Steel Roller Conveyor

YiFan's Medium Duty Flexible Gravity Steel Roller Conveyor is widely used in assembly or transport line,physical distribution,container stuffing,etc.It is designed especially to convey flat-bottom items like cartons.It is all-steel joint structure makes sure that it holds its integrity when extended or curved.It helps to increase work efficiency and decrease labor intensity in material handling.

Specification Effective Width: 600mm Overall Width: 750mm Adjustable Height: 700-1000mm Extendable Length: 2960-6900mm Load Capacity: 50kg/m Caster: 4" swivel lockable casters Side Links: 2.5mm thickness powder coated join plates

50kg/m load capacity

End stop guard

high qualty galvanized steel rollers

Model List

Model	Open Length (mm)	Close Length (mm)	Adjustable Height (mm)	Roller Width (mm)	Roller Dia (mm)
FGR-M2.5	2500	1120	700-1000	600	50
FGR-M3.6	3600	1580	700-1000	600	50
FGR-M4.7	4700	2040	700-1000	600	50
FGR-M5.8	5800	2500	700-1000	600	50
FGR-M6.9	6900	2960	700-1000	600	50
FGR-M8	8000	3420	700-1000	600	50
FGR-M9.1	9100	3880	700-1000	600	50
FGR-M10.2	10200	4340	700-1000	600	50
FGR-M11.3	11300	4800	700-1000	600	50
FGR-M12.4	12400	5260	700-1000	600	50
FGR-M13.5	13500	5720	700-1000	600	50
FGR-M14.6	14600	6180	700-1000	600	50
FGR-M15.7	15700	6640	700-1000	600	50
PS: for conveyor length more than 8m, we will take the conveyor into two or more parts for packing.This way is more safe for shipment and also help save spaces.

Details Images

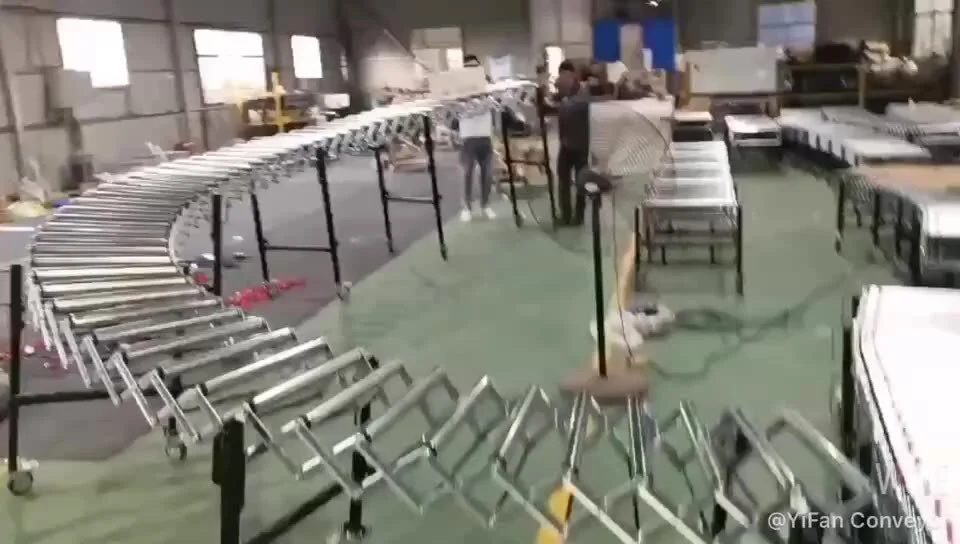

Easy to take a 180 degree curve

Extendable and expandable

End package stop guard is available

Adjustable Height: 700-1000mm

50mm diameter galvanized steel rollers

Double steel roller is available

Application

How to choose flexible conveyor model?

● The flexible roller conveyors have a bigger load capacity than the standard flexible skate wheel conveyor.
● Withthe same length,width,height,the standard flexible skate wheel conveyor is more economical than gravity roller units and makes the goods moves smoother.
● Double roller conveyor type makes the goods move smoother and more fluent than the single roller type.
● Any items with an uneven or open buttom,or with a rim on the bottom should be transported on rollers.
● Conveyed items can be wider than the conveyor.Extra wide items like plywood or sheet materials can be moved if carefully centered.
● Typically,3 rollers or 3 skate wheel lines must be beneath the load at any particular time for easy rolling.

Flexible Powered Roller Conveyor-V belt

Flexible Gravity Steel Roller Conveyor

Flexible Steel Skate Wheel Conveyor

Flexible Powered Roller Conveyor-O belt

Flexible Double PVC Roller Conveyor

Flexible Plastic Skate Wheel Conveyor

Packing and Shipping

Take off the supporting legs first

Pack the leg kits in a separately cartons

Put the screws, spacers and handles in a small hardware cartons

Lay the conveyor roller surface one by one on the pallet.

Wrap with buble film and fixed well by bandages.

How to set up?

FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
