    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V
    Power:2.2 KW
    Dimension(L*W*H):L6800*W800*H2500 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:800mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):700 kg
    Belt Width:800mm
    Belt Material:PVC
    Adjustable Height:700-2500mm
    Adjustable Speed:10-20m/min
    Motor Power:0.75kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:250mm diameter nylon reinforced wheels
    Packing Size:L6800*W800*H2500 mm
    Others:With head anti-collision bar and LED Lights
    Video Description
    Product Overview

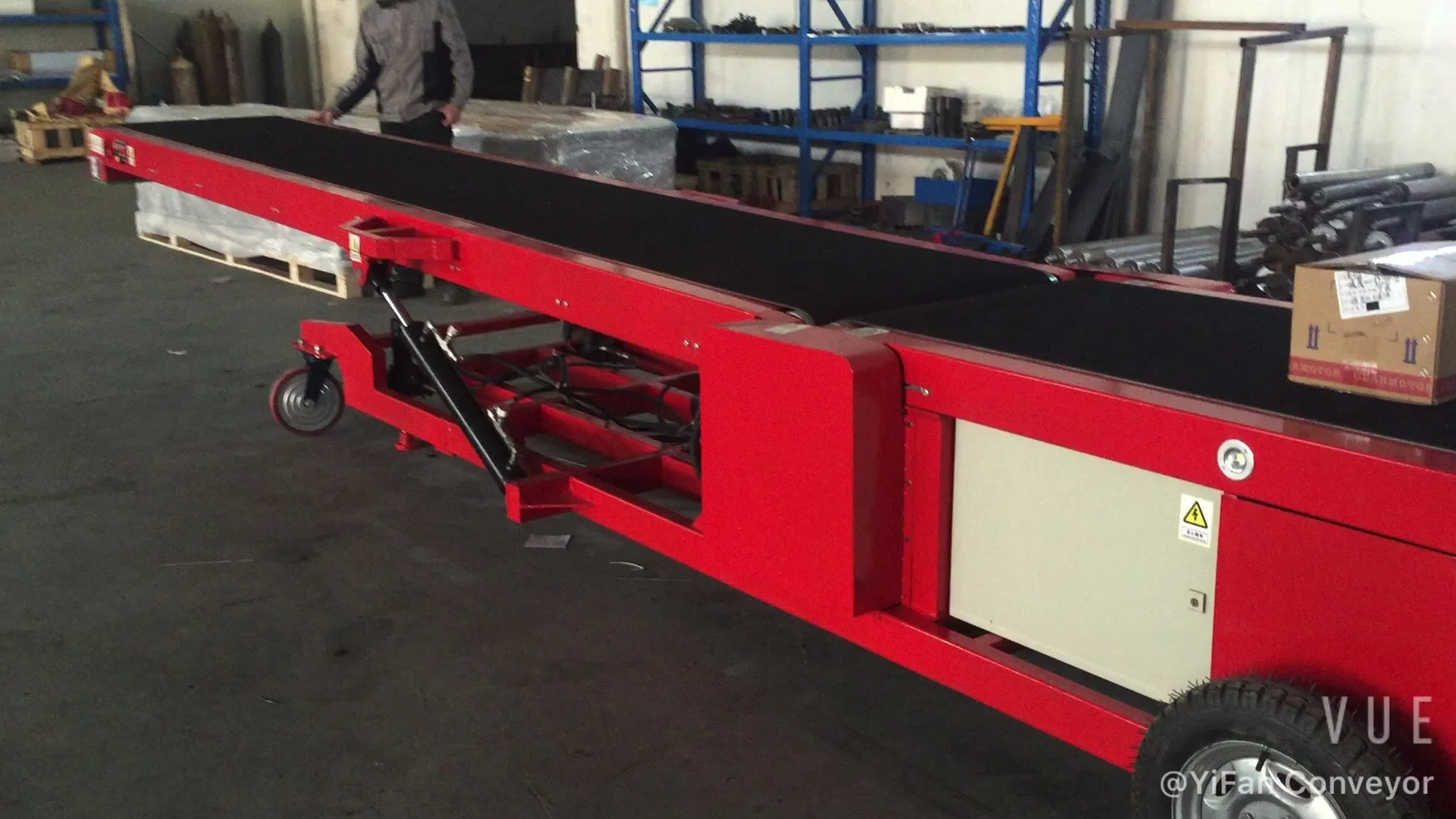

    AUTO WALKING TRUCK LOADING CONVEYOR (TLC-W800)

    YiFan loading conveyor manufacturer produces a number of different product series, including trailers/vans/trucks/containers unloading conveyor.Closely following the market trend, YiFan uses advanced production equipment and manufacturing technology to produce the truck loading and unloading conveyor. YiFan's TLC-W800 truck loading conveyor is an AUTO-WALKING loading conveyor. It is very popular to automatically load/unload goods in and out containers in warehouse without loading docks.The mechanized operation largely increases work efficiency, relieves labor intensity and also reduces cost for modern enterprises in a wide range of applications. It facilitates goods handling work and also provides advantages to advanced production, modernized management and safe operation.
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 8
    Technical Parameters
    Belt:5mm thick rough top black PVC belt Belt Driven Motor: 2.2kw, SEW Auto Walk Motor: 0.75kw, SEW Hydraulic Power Unit: 1.5kw Frequency Inverter: Delta Belt Running Speed: 10-20m/min Walking Speed: 12m/min Load Capacity: 50kg/m Frame Construction: carbon steel, paint Wheels: 250mm dia Nylon reinforced wheels With head anti-collision bar and LED Lights
    Details Image
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 10




    Main control panel
    With Load,Unload,Up,Down,Stop,Emergency Stop,Light ON/OFF
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 12





    Electric Box
    The main electric elements is installed in the control box
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 14






    Front head control panel
    Load,Unload,Up,Down,Emergency Stop
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 16





    Mobile on pneumatic tyre
    The conveyor can auto move around in the warehouse
    Successful Project
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 18
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 20
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 22
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 24
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 26
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 28
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 30
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 32
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 34
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 36
    Customer Inspection
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 38
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 40
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 42
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 44
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 46
    Company Profile
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 48
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 50
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 52
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 54
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 56
    50KG Big Bag Fertilizer Load Conveyor on Unloader Heavy Conveyor Belt Machine 58
    Identifying the competitive advantage for itself and sustaining it is at the heart of Ningbo YiFan Conveyor Equipment Co.,Ltd. The rugged and heavy-duty self-tracking skate wheels can ensure a smooth conveying. With solid technical strength, Ningbo YiFan Conveyor Equipment Co.,Ltd has strong capability of [核心关键词 processing, development and production. The rugged and heavy-duty self-tracking skate wheels can ensure a smooth conveying.
