450mm High Flexible Motorized Roller Conveyor

FPR-V

Start Port:

Ningbo

Payment:

10-15 days

MOQ:

1 set

Model:

FPR-V

Load Capacity:

FPR-V8.4-800

Delivery time:

20 days

Certification:

available

Inquiry

Write a Review

FPR-V

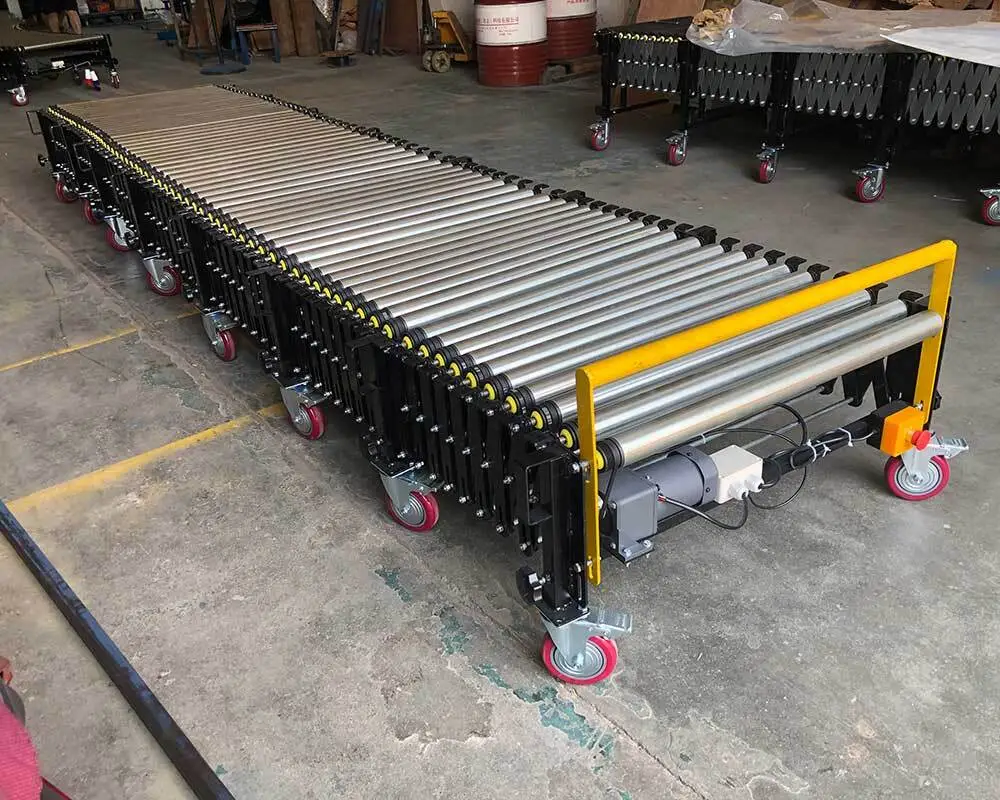

450mm HIGH FLEXIBLE MOTORIZED ROLLER CONVEYOR

Yifan's V belt flexible motorized roller conveyor is one of the most durable flexible models manufactured in China.It can carrying Max.100KG boxes per meter and can still keep good condition after be used for three years.This conveyor is suitable for flexible and changeable occasions.Driven by motor, goods is transmitted automatically along with roller, no need people to push goods.Shorten the distance of manual handling materials back and forth,shorten time,reduce the labor intensity,reduce the goods damage and improve the work efficiency.The conveyor height can be customized to Min.450mm and Max.1600mm.Side guide rollers can be added and dismantled when needed.

TECHNICAL PARAMETERS

Belt	High quality Yuanyang V belt
Roller	Dia 50*1.5mm galvanized steel roller, Max. gap138mm center to center
Motor	90W/120W electronic governor motor
Frame	5mm thickness reinforced X shape side links
Leg	32×32 powder coated tube with 25×25 galvanized tube inside
Caster	5" high quality swivel lockable polyurethane casters
Control Box	Forward/Stop/Reverse
Frequency Inverter	Delta

MODEL LIST

Model	Open Length (mm)	Close Length (mm)	Roller Width (mm)	AdjustableHeight (mm)	VariableSpeed (m/min)	Max.Load (kg/㎡)	Motor Power (w)
FPR-V4.8	4800	2040	600/800	450-650	10-20	100	450
FPR-V6	6000	2550	600/800	450-650	10-20	100	540
FPR-V7.2	7200	3060	600/800	450-650	10-20	100	630
FPR-V.48	8400	3570	600/800	450-650	10-20	100	720
FPR-V9.6	9600	4080	600/800	450-650	10-20	100	810
FPR-V10.8	10800	4590	600/800	450-650	10-20	100	900
FPR-V12	12000	5100	600/800	450-650	10-20	100	990
FPR-V13.2	13200	5610	600/800	450-650	10-20	100	1080
FPR-V14.4	14400	6120	600/800	450-650	10-20	100	1170
FPR-V15.6	15600	6630	600/800	450-650	10-20	100	1260
FPR-V16.8	16800	7140	600/800	450-650	10-20	100	1350
FPR-V18	18000	7650	600/800	450-650	10-20	100	1440
FPR-V19.2	19200	8160	600/800	450-650	10-20	100	1530
FPR-V20.4	20400	8670	600/800	450-650	10-20	100	1620

SHOW DETAILS

450mm High Flexible Motorized Roller Conveyor 7

Package end stop guard

450mm High Flexible Motorized Roller Conveyor 8

Can add sie guide rollers wheen needed

450mm High Flexible Motorized Roller Conveyor 9

Two sets joint together by buckles

450mm High Flexible Motorized Roller Conveyor 10

End power supply plug for additional conveyor

450mm High Flexible Motorized Roller Conveyor 11

50mm diameter galvanized steel rollers

450mm High Flexible Motorized Roller Conveyor 12

Mobile on 5" universal castors

450mm High Flexible Motorized Roller Conveyor 13

Control panel include Forward/Stop/Revers, Emergency Stop, Speed Knob
