4 stages fixed telescopic belt conveyor Used for container loading and unloading1
5.0
Start Port:
Sea freight
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'SLAT CONVEYOR', 'sku_img': None, 'sku_id': '191284229:430360791;'}]
Load Capacity:
[{'sku_name': 'FTBC-4S-6/12-800', 'sku_img': None, 'sku_id': '3:-1;'}]
Lead_Time:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Certification:
Customized logo (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other, Hotels, Restaurant, Home Use
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Belt conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Power:1.5kw
Dimension(L*W*H):L6000/12000*W600*H950 mm
Warranty:1 Year
Width or Diameter:belt 600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):3000 kg
Belt Material:PVK
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Belt Width:600mm,800mm
Belt Speed:10-30m/min
Boom Speed:10-12m/min
Conveyor Height:adjust by hydraulic
Load Capacity:50kg/m
After-sales Service Provided:Free spare parts
Video Description
Product Overview

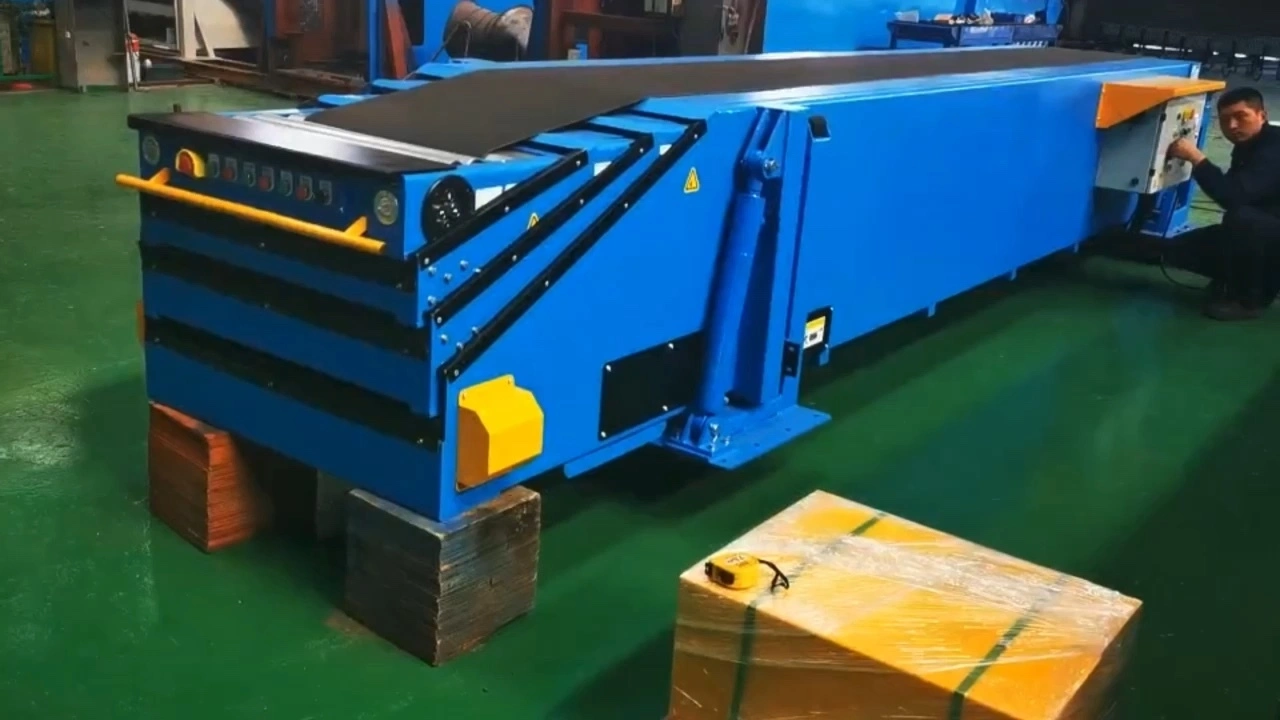

Telescopic Belt Conveyor (Model: FTBC-4S-6/12-800)
Features：
1.The telescopic belt conveyor is mainly composed of fixed part, movable part, synchronous telescopic thrust mechanism, belt conveyor mechanism, protective rod mechanism and control system. The fixed part and movable part are made of manganese steel with a thickness of 6 mm / 5 mm.
2.The fore end shall be rigidly constructed to withstand the impact load during loading and unloading of luggage. The length should not be less than 300 mm (gravity roller conveyor inside the telescopic machine), should be zinc coated on the surface of the drum.
3.It has function of expanding while conveying the goods to improve the conveying efficiency and has the point to point working mode.
4.The front button has a protective baffle, which can effectively protect the button and prevent the button from being damaged when the belt conveyor is expanding and contracting.
5.The front end of the telescopic machine is equipped with anti-collision rod.
6.The front end should be equipped with LED lights to ensure the brightness of the truck during loading and unloading.
Technical Parameters
40ft Container Loading Unloading Telescopic Belt Conveyor | ||
Fixed Length | 6000mm | |
Extension | 12000mm | |
Total Length | 1000mm | |
Belt Spec | 800mm width Siegling PVK belt, alligator clip jointing | |
Belt Top Height | 900mm, can lift up to 2100mm | |
Operation Direction | forward & reverse | |
Load Capacity | 50kg/m | |
Belt Driven Motor | 3.0kw, SEW | |
Telescopic Motor | 0.75kw, SEW | |
Hydraulic Power Pack | 2.2kw | |
Machine Total Power | 5.95 kw | |
Electric Control System | Siemens PLC intelligent controller | |
Main Electric Components | Schneider,including abnormal fault automatic detection alarm device | |
Telescopic Chain | Donghua, Hangzhou | |
Cable Carrier | Kruis | |
Standard Color | BLUE, RAL5005 | |
Power Cord Length | 10m | |
Voltage | 380V, three phase, 50Hz | |
More Type
Successful Project
Company Profile
FAQ
Please feel free to contact us at sales@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
The product provides excellent performance to every application. The specifications, load capacity, and other special functions can be customized.
With the characteristics that are highly attractive to buyers, the product is sure to be more widely applied in the market. The specifications, load capacity, and other special functions can be customized.
