4 stages Dockless Inclined Telescopic Belt Conveyor Container Loading Unloading System1
5.0
Start Port:
Sea freight
MOQ:
[{'sku_name': '60KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'SLAT CONVEYOR', 'sku_img': None, 'sku_id': '191284229:430360791;'}]
Load Capacity:
[{'sku_name': 'ITBC-4S-6/12-800', 'sku_img': None, 'sku_id': '3:-1;'}]
Lead_Time:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Certification:
Customized logo (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Telescopic Belt conveyor
Place of Origin:China
Brand Name:YiFan
Power:0.75kw,2.2kw
Dimension(L*W*H):L6100*W1400*H1000mm,4000KGS
Warranty:1 Year
Width or Diameter:belt600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):5500 kg
Belt material:PVK
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Belt Width:600mm,800mm
Belt Speed:10-30m/min
Boom Speed:10-12m/min
Conveyor Height:adjust by hydraulic
Load Capacity:50kg/m
After-sales Service Provided:Free spare parts
Video Description
Product Overview
ITBC-4S-6/12-800

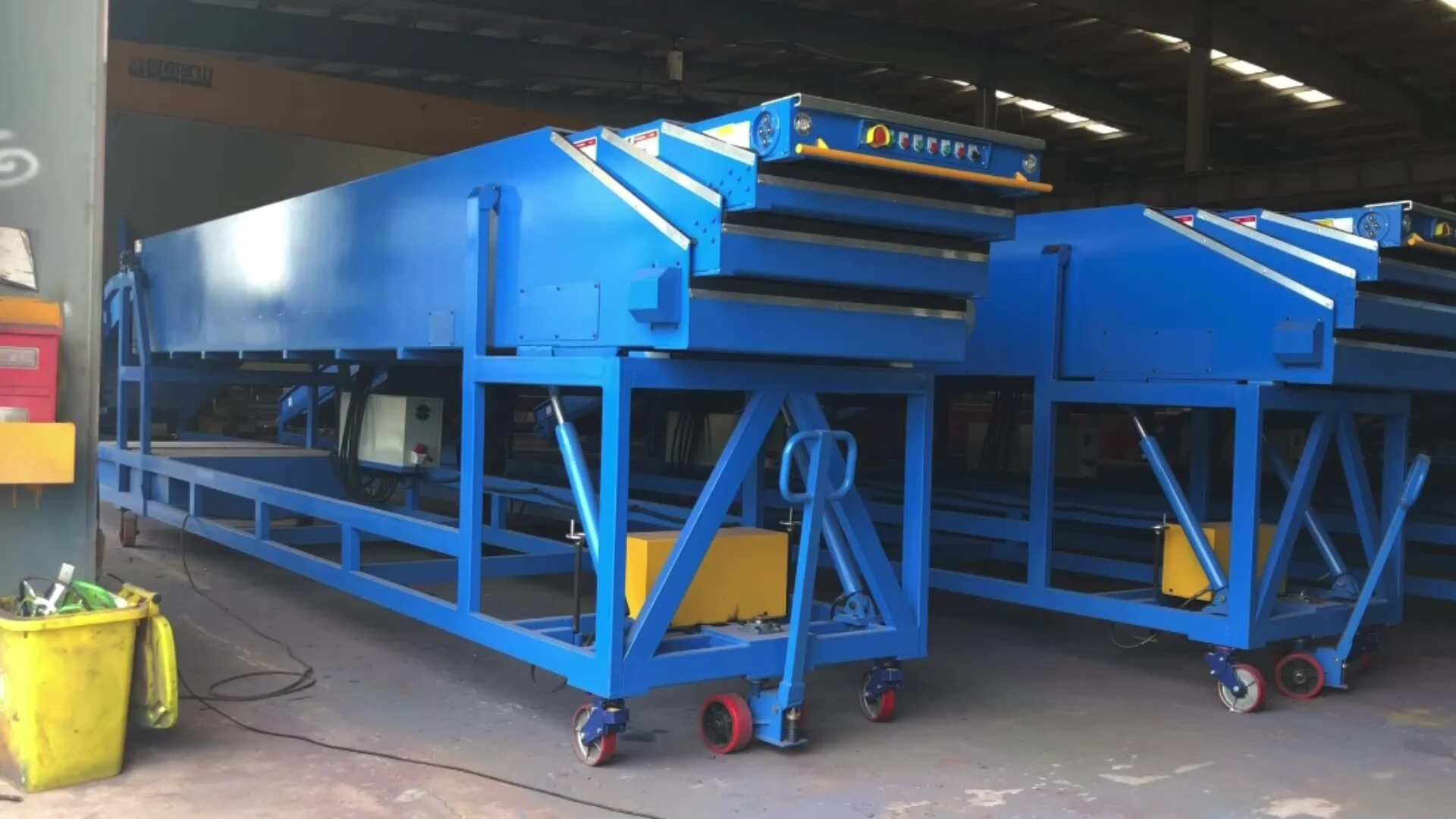

DocklessTelescopic Belt Conveyor
DocklessTelescopic Belt Conveyor
Features：
1.The telescopic belt conveyor is mainly composed of fixed part, movable part, synchronous telescopic thrust mechanism, belt conveyor mechanism, protective rod mechanism and control system. The fixed part and movable part are made of manganese steel with a thickness of 6 mm / 5 mm.
2.The fore end shall be rigidly constructed to withstand the impact load during loading and unloading of luggage. The length should not be less than 300 mm (gravity roller conveyor inside the telescopic machine), should be zinc coated on the surface of the drum.
3.It has function of expanding while conveying the goods to improve the conveying efficiency and has the point to point working mode.
4.The front button has a protective baffle, which can effectively protect the button and prevent the button from being damaged when the belt conveyor is expanding and contracting.
5.The front end of the telescopic machine is equipped with anti-collision rod.
6.The front end should be equipped with LED lights to ensure the brightness of the truck during loading and unloading.
Technical Parameters
Model Number | ITBC-4S-6/12-800 |
Fixed Length | 6000mm |
Extension | 12000mm |
Total Length | 18000mm |
Tail Boom | 4000mm |
Belt Spec | 800mm width Siegling PVK belt, alligator clip jointing |
Belt Top Height | 2.3m, can lift up 1.65m |
Belt Direction | Forward & reverse |
Max. Load Capacity | 60kg/m |
Belt Driven Motor | 3.0 kw, SEW |
Telescopic Motor | 0.75kw, SEW |
Tail Boom Motor | 1.5kw, SEW |
Hydraulic Power Pack | 2.2kw |
Machine Total Power | 7.45kw |
Electric Control System | Siemens PLC intelligent controller |
Main Electric Components | Schneider,including abnormal fault automatic detection alarm device |
Telescopic Chain | Donghua, Hangzhou |
Cable Carrier | Kruis |
Power Cord Length | 10m |
Standard Color | BLUE, RAL5015 |
Voltage | 380V, three phase, 50Hz |
