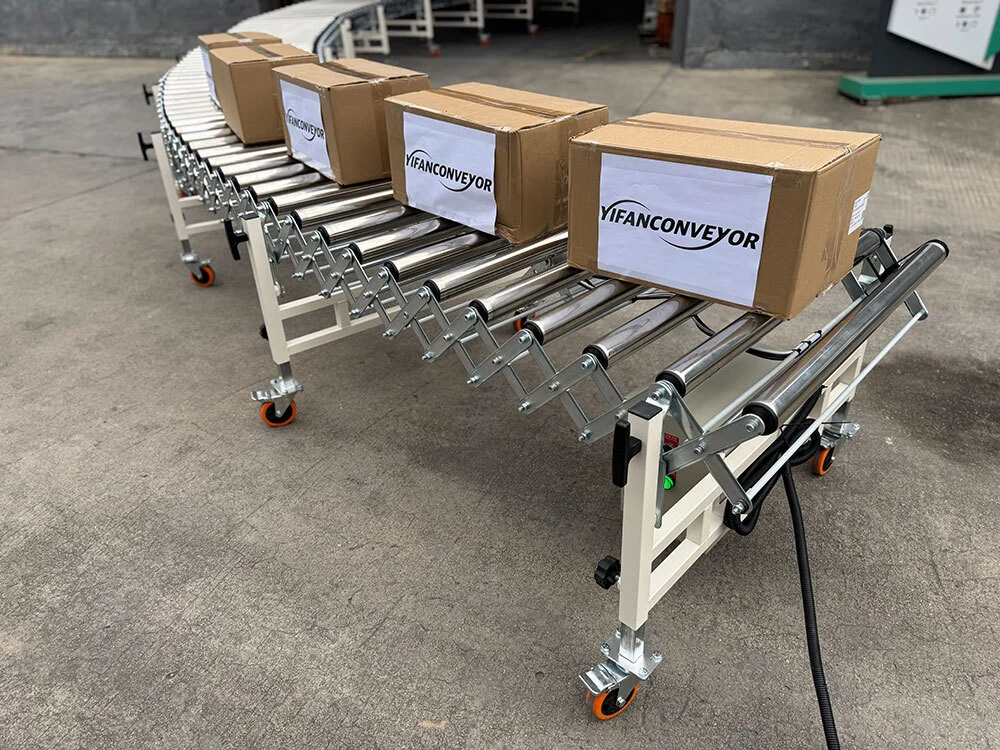

SUS201 Roller Motorized Flexible Conveyor System 1

SUS201 Roller Motorized Flexible Conveyor System 2

SUS201 Roller Motorized Flexible Conveyor System 3

SUS201 Roller Motorized Flexible Conveyor System 4

SUS201 Roller Motorized Flexible Conveyor System 5

SUS201 Roller Motorized Flexible Conveyor System 6

SUS201 Roller Motorized Flexible Conveyor System

fpr-lv-sus201

Ningbo

T/T

1 set

15 days

انکوائری

تجزیہ لکھیں

FLEXIBLE POWERED PU SLEEVED ROLLER CONVEYOR

柔性动力滚筒输送机 is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height. Having enough power supply by one mini motor per section, it is well qualified to intensively transport goods especially with flat bottom in the warehouse/storehouse, workshop, factory, harbor, dock, etc. In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line. It satisfies the easy, quick and efficient goods delivery.

FPR-LV-sus304-002

PRODUCT PARAMETERS

Belt	high quality V belt
滚筒	Dia 50mm PU sleeved roller, Max. gap 130mm center to center
发动机	90W motor
Frame	3.5mm thickness galvanized curved join plates with better load
Leg	32×32 powder coated tube with 25×25 galvanized tube inside
Caster	Dia 125mm high quality swivel lockable polyurethane casters
Control Box	Forward/Stop/Reverse
变频器	三角洲

MODEL LIST

模型	Open Length (mm)	Close Length (mm)	宽度 (mm)	AdjustableHeight (mm)	VariableSpeed (m/min)	Max.Load (kg/㎡)	电机功率 (w)
FPR-LPU4.8	4800	2040	600,800	600-800	10-20	50	360
FPR- LPU 6	6000	2550	600,800	600-800	10-20	50	450
FPR- LPU 7.2	7200	3060	600,800	600-800	10-20	50	540
FPR- LPU 8.4	8400	3570	600,800	600-800	10-20	50	630
FPR- LPU9.6	9600	4080	600,800	600-800	10-20	50	720
FPR- LPU10.8	10800	4590	600,800	600-800	10-20	50	810
FPR- LPU12	12000	5100	600,800	600-800	10-20	50	900
FPR- LPU13.2	13200	5610	600,800	600-800	10-20	50	990
FPR- LPU14.4	14400	6120	600,800	600-800	10-20	50	1080
FPR- LPU15.6	15600	6630	600,800	600-800	10-20	50	1170
FPR- LPU16.8	16800	7140	600,800	600-800	10-20	50	1260
FPR- LPU 18	18000	7650	600,800	600-800	10-20	50	1350
FPR- LPU19.2	19200	8160	600,800	600-800	10-20	50	1440
FPR- LPU20.4	20400	8670	600,800	600-800	10-20	50	1530
