Flexible Skate Wheel Conveyor
Home  > new category  > Flexible Skate Wheel Conveyor  >

The best transport heavy duty goods steel gravity conveyor

这里可以自定义设置
The best transport heavy duty goods steel gravity conveyor
B站不支持收货地址
B站不支持库存规格
Model
Gravity Conveyor
MOQ
50kg/m
Start Port
Sea freight
Certification
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
Lead_Time
1 - 20(Sets):15(days),>20(Sets):Negotiable(days)
Load Capacity
FGW-P7.5-600
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, E-business Warehouse, Distribution Center, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Plastic
Material Feature:Oil Resistant
Structure:Conveyor System
Place of Origin:NINGBO,China
Brand Name:YiFan
Voltage:No power
Power:other
Dimension(L*W*H):Variable
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2019
Warranty of core components:1 Year
Core Components:Motor, Bearing
Weight (KG):300 kg
Adjustable Length:2200-7500mm
Height:710-1120mm
Load Capacity:40kg/m
Width:600mm
Wheel Material:plastic
Frame Material:steel
Usage:unloading carton
After-sales Service Provided:Free spare parts
Product Overview

Flexible Gravity Skate Wheel Conveyor

Flexible Gravity Skate Wheel Conveyor is often chosen to convey small & medium sized flat-bottom items in harbor, dock,warehouse/storehouse, factory, etc.It is extendable, retractable and bendable. It can take curve flexibly even in zigzag narrowaisles. The crossed skate wheels make sure that conveyed goods will be automatically oriented and not fall down from sides. Theconveyor largely facilitates goods delivery work.
Specification Effective Width: 600mm Adjustable Height: 710-112 Extendable Length: 2200-7500mm Load Capacity: 40kg/m Caster: 4" swivel lockable casters Side Links: 2.5mm thickness curved join plates
Drawing
Details Image

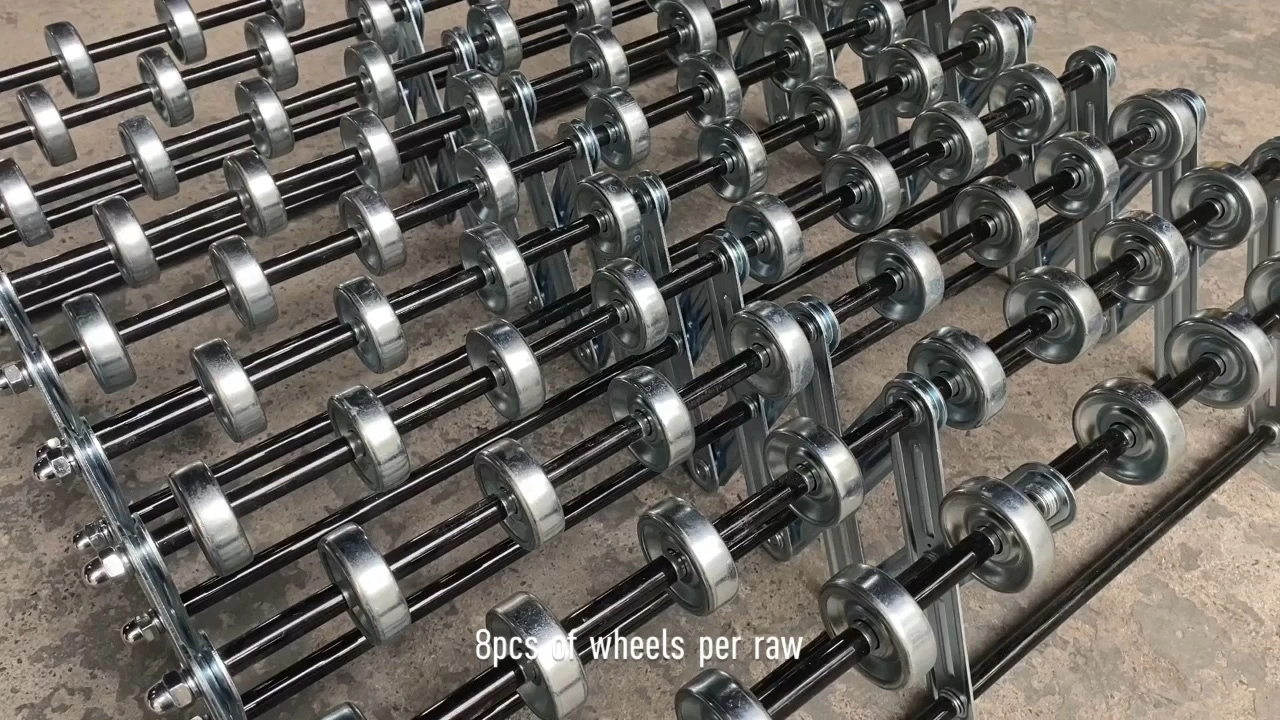

Plastic Wheels
Use high free 49mm skate wheels




Joint Buckle
Each conveyor with 2 collection buckles at the end




Curved side plates
Adopt 2.5mm curved side links with good load




Adjustable Legs
Adjustable conveyor height: 28-44 inches
Three Optional Colors

OPTION ONE

Plastic black wheels and blue legs

OPTION TWO

Steel wheels and black legs

OPTION THREE

Steel wheels and blue legs
Packing and Shipping
The legs are packed in a independent cartons
One section body with one carton
Finished cartons with bandagebandage
Take off the supporting legs first
Pack the leg kits in a separately cartons
Each cartons with plastic bag
How to set up?
How to choose flexible conveyor model?
● The flexible roller conveyors have a bigger load capacity than the standard flexible skate wheel conveyor.
● Withthe same length,width,height,the standard flexible skate wheel conveyor is more economical than gravity roller units and makes the goods moves smoother.
● Double roller conveyor type makes the goods move smoother and more fluent than the single roller type.
● Any items with an uneven or open buttom,or with a rim on the bottom should be transported on rollers.
● Conveyed items can be wider than the conveyor.Extra wide items like plywood or sheet materials can be moved if carefully centered.
● Typically,3 rollers or 3 skate wheel lines must be beneath the load at any particular time for easy rolling.
Flexible Gravity Steel Roller Conveyor
Flexible Steel Skate Wheel Conveyor
Flexible Powered Roller Conveyor-O belt
Flexible Double PVC Roller Conveyor
Flexible Plastic Skate Wheel Conveyor
Company Profile
FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

The product has won good user reputation and has great market application prospects. With a manual pallet truck, it is very easy to move around. The market response to the product is positive, which implies that the product will be more applied in the market. With a manual pallet truck, it is very easy to move around.
