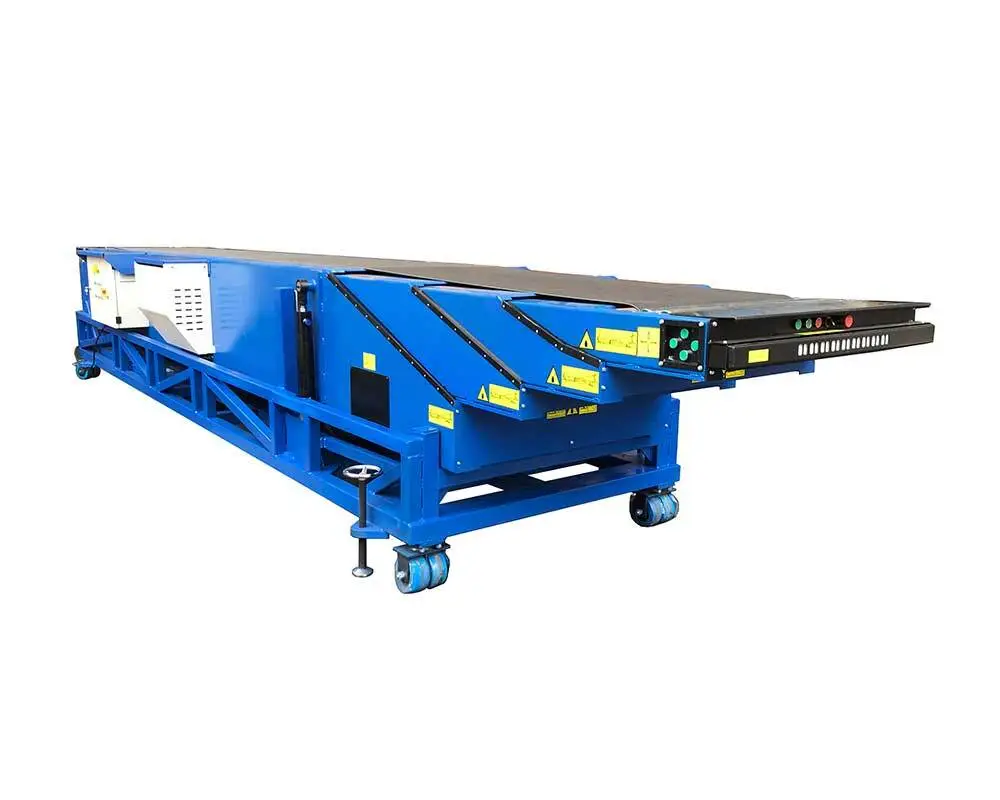

Movable Telescopic Conveyor Belt for Loading Unloading 40ft Conainer
Přehled produktu
The Movable Telescopic Conveyor Belt for Loading and Unloading 40ft Containers is a cutting-edge solution designed to streamline the material handling process. This conveyor belt system is engineered to handle the unique demands of loading and unloading large containers efficiently. Its telescopic design allows for flexible extension and retraction, accommodating containers of varying lengths with ease. The conveyor belt is mounted on a movable frame, providing excellent mobility and adaptability for different loading and unloading scenarios.
Aplikace
This conveyor belt is particularly suited for use in logistics centers, warehouses, and distribution facilities where 40ft containers are regularly handled. It is ideal for applications that involve the transfer of goods from containers to storage areas or vice versa. Its flexibility makes it valuable in industries such as retail, manufacturing, and import/export, where efficient container handling is crucial to maintaining smooth operations.
Vlastnosti
Telescopic functionality for adjusting the length of the conveyor to fit various container sizes.
Movable frame for easy positioning and relocation within different work areas.
Heavy-duty construction designed to handle the weight and volume of goods typically found in 40ft containers.
Quick setup and teardown capabilities for efficient use and storage.
Enhanced safety features, including sturdy guardrails and non-slip surfaces, to ensure secure operation.
MTBC-4S-6/12-800
4 STAGES MOBILE TELESCOPIC BELT CONVEYOR
Teleskopický pásový dopravník je automatické nakládací/vykládací zařízení, jehož délka je řiditelná, široce používané v logistice, přístavech, docích, stanicích, letištích a skladech, včetně průmyslu pošty, domácích spotřebičů, potravinářství, tabáku a lehkého průmyslu. Šetří čas při přenášení tam a zpět, a proto zefektivňuje a zpomaluje doručovací práce a také méně poškozuje zboží a pomáhá podnikům snižovat náklady a zvyšovat efektivitu a kvalitu.
PRODUCT PARAMETERS
4 Stages Mobile Telescopic Belt Conveyor | |
Pevná délka | 6m |
Délka prodloužení | 12m |
Celková délka | 18m |
Pás Spec | 800mm width PVK belt, alligator clip jointing |
Belt Top Height | 1200-2200mm |
Směr pásu | Vpřed & zvrátit |
Max. Kapacita zatížení | 60 kg/m |
Motor poháněný řemenem | 4kw, SEW |
Teleskopický motor | 0,75kw, SEW |
Hydraulický agregát | 2.2kw |
Celkový výkon stroje | 6.95kw |
Electric Control System | Schneider PLC intelligent controller |
Hlavní elektrické komponenty | Schneider,including abnormal fault automatic detection alarm device |
Teleskopický řetěz | Donghua, Chang-čou |
Délka napájecího kabelu | 5-10m |
Standardní barva | BLUE/RED |
Napětí | 380V, třífázové, 50Hz |
SHOW DETAILS
MODEL LIST
| Typ |
Model No.
| A Pevná délka | B Extension | C Celková délka | Šířka pásu | Height | Kapacita zatížení | Belt Speed | Extend Speed |
3 stages | MTBC-3S-4/5.4 | 4m | 5.4m | 9.4m | 600/800mm | 850-1100mm | 50 kg/m | 15-30m/min | 10m/min |
| MTBC-3S-4.5/6 | 4.5m | 6m | 10.5m | 600/800mm | 850-1100mm | 50 kg/m | 15-30m/min | 10m/min | |
| MTBC-3S-5/7 | 5m | 7m | 12m | 600/800mm | 850-1100mm | 50 kg/m | 15-30m/min | 10m/min | |
| MTBC-3S-5.4/7.3 | 5.4m | 7.3m | 12.7m | 600/800mm | 850-1100mm | 50 kg/m | 15-30m/min | 10m/min | |
| MTBC-3S-6/8.5 | 6m | 8m | 14m | 600/800mm | 850-1100mm | 50 kg/m | 15-30m/min | 10m/min | |
| MTBC-3S-6.5/9.4 | 6.5m | 9.4m | 15.9m | 600/800mm | 850-1100mm | 50 kg/m | 15-30m/min | 10m/min | |
| MTBC-3S-7/9.6 | 7m | 9.6m | 16.6m | 600/800mm | 850-1100mm | 50 kg/m | 15-30m/min | 10m/min | |
|
4 stages
| MTBC-4S-4/7 | 4m | 7m | 11m | 600/800mm | 950-1200mm | 50 kg/m | 15-30m/min | 10m/min |
| MTBC-4S-4.5/8.5 | 4.5m | 8.5m | 13m | 600/800mm | 950-1200mm | 50 kg/m | 15-30m/min | 10m/min | |
| MTBC-4S-5/9.5 | 5m | 9.5m | 14.5m | 600/800mm | 950-1200mm | 50 kg/m | 15-30m/min | 10m/min | |
| MTBC-4S-5.4/10.3 | 5.4m | 10.3m | 15.7m | 600/800mm | 950-1200mm | 50 kg/m | 15-30m/min | 10m/min | |
| MTBC-4S-6/12 | 6m | 12m | 18m | 600/800mm | 950-1200mm | 50 kg/m | 15-30m/min | 10m/min | |
| MTBC-4S-6.5/12.8 | 6.5m | 12.8m | 19.3m | 600/800mm | 950-1200mm | 50 kg/m | 15-30m/min | 10m/min | |
| MTBC-4S-7/14 | 7m | 14m | 21m | 600/800mm | 950-1200mm | 50 kg/m | 15-30m/min | 10m/min | |
