Stainless Steel 304 Portable Belt Conveyor | TLC-600

Stainless steel climbing belt machine is widely used in electronics, home appliances, communications, computers, circuit boards, meters, furniture, clothing, automobiles, tires, food, beverage production, assembly, testing, packaging, pharmaceutical express logistics and other industries. It can cooperate with the process flow in the production process of enterprises to improve production efficiency.

    oops...!

    no product data.

    Go to homepage
    6

    TLC-600

    SUS304 PORTABLE BELT CONVEYOR

    Stainless steel climbing belt machine ‌ is a kind of equipment used for material conveying, especially suitable for the occasion to overcome the height difference. The conveyor belt material of stainless steel climbing belt machine is diverse, including canvas belt, plastic tape, anti-static PVC belt, rubber belt (heavy objects with steel wire rubber belt) and metal mesh belt. The material of the wire body support can be stainless steel, aluminum profile or carbon steel with powder coated.


    In order to ensure the long-term stable operation of the stainless steel climbing belt machine, it is recommended to check the wear of the belt regularly and replace the severely worn part in time. At the same time, keep the equipment clean to prevent dust and debris from entering the transmission system. Regular lubrication of transmission components to reduce friction and wear and extend the service life of the equipment.


    PRODUCT PARAMETERS

    图纸


    Technical Parameters

    Belt Type

    3mm thick green PVC belt with Steel Baffles

    Belt Width

    600mm,700mm,800mm (can be customized)

    Belt Directionforward & reverse
    Loading Height800mm (can be customized)
    Discharge Height2400mm (can be customized)
    Motor Power0.75kw
    Frequency Inverter0.75kw, Delta brand
    Adjustable Speed10-20m/min
    Main Electric ElementsSchneider brand
    Castersheavy duty 6" universal lockable casters
    Frame Materialcarbon steel, painted
    Voltage220V single phase / 380V three phase

    SHOW DETAILS

    SUS304 Control Box
    SUS304 Control Box

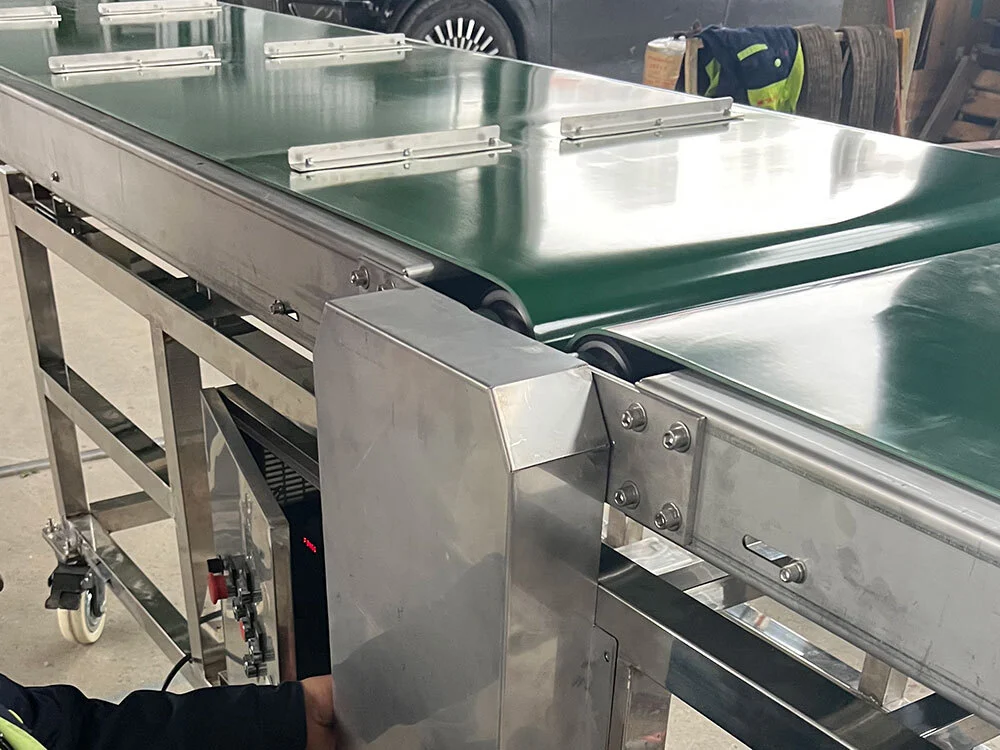

    PVC Belt with steel baffles
    PVC Belt with steel baffles
    Conveyor with customized height of 2
    Conveyor with customized height of 2

    Application 1

    Loading parcles in STO express company warehouse

    Stainless Steel 304 Portable Belt Conveyor | TLC-600 11
    Stainless Steel 304 Portable Belt Conveyor | TLC-600 12

    Application 2

    Loading parcles in STO express company warehouse
