YiFan Conveyor Simple Container Truck Loading Conveyor Manufacturers | TLC-600
TLC-P600
SIMPLE LOADING CONVEYOR
The difference between TLC-600 and TLC-P600 is only the front tongue.
When remove the front tongue, TLC-P600 changed to be TLC-600.
PRODUCT PARAMETERS
Technical Parameters | |
Belt Width | 600mm |
Belt Type | T=5mm rough top PVC belt |
Adjustable Height | 700-2500mm |
Adjustable Speed | 10-20m/min |
Load Capacity | 50kg/m |
Belt Driven Motor | 1.5kw |
Conveyor Lift Motor | 2.2kw |
Frequency Inverter | Delta |
Main Electric Elements | Schneider |
Caster | Φ125mm heavy duty lockable swivel PU casters |
Frame Construction | Carbon steel, powder coated in BLUE RAL 5015 |
Power Supply | 220V, single phase,50Hz/380V,three phase,50Hz |
SHOW DETAILS
Application 1
Unloading Jerry Cans from Vans to warehouse

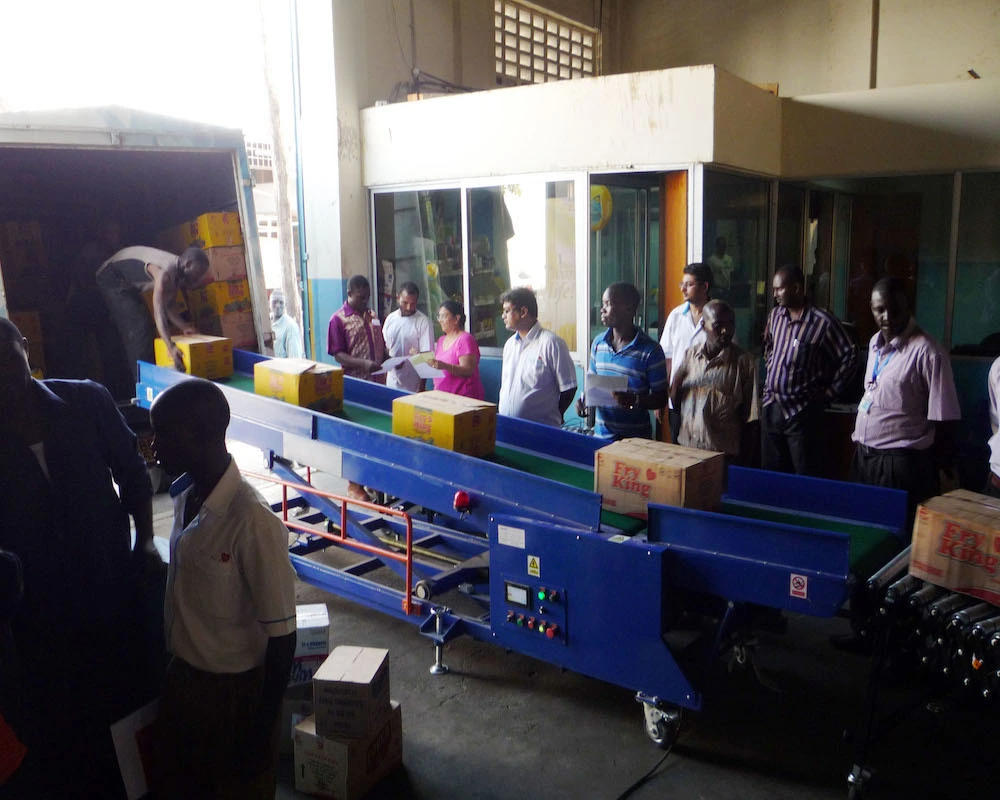

Application 2
Unloading cartons from Vans to warehouse
