Pressed Zinc Steel Ball Bearing Rail Conveyor,Storage Production Table Warehouse Conveyor Roller Skate Wheel-YiFan Conveyor

Overview

Quick Details

Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company

Showroom Location:None

Condition:New

Material:Carbon steel

Material Feature:Fire Resistant

Structure:Roller Conveyor

Place of Origin:Zhejiang, China

Brand Name:YiFan

Power:no power

Dimension(L*W*H):L6900*W600*H700/1000 mm

Warranty:1 Year

Width or Diameter:600mm

Machinery Test Report:Not Available

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2020

Warranty of core components:1 Year

Core Components:Roller, Wheel

Weight (KG):200 kg

Extendable Length:2220-6900mm

Effective Width:600mm

Adjustable Height:700-1000mm

Load Capacity:40kg/m

Wheel Diameter:50mm

Wheel Material:Galvanized Steel

Roller Center Gap:Max.120mm

Side Frame:2.5mm thickness steel plates

Supporting Legs:galvanized round steel tubes

Caster:4'' swivel lockable caster

Product Overview

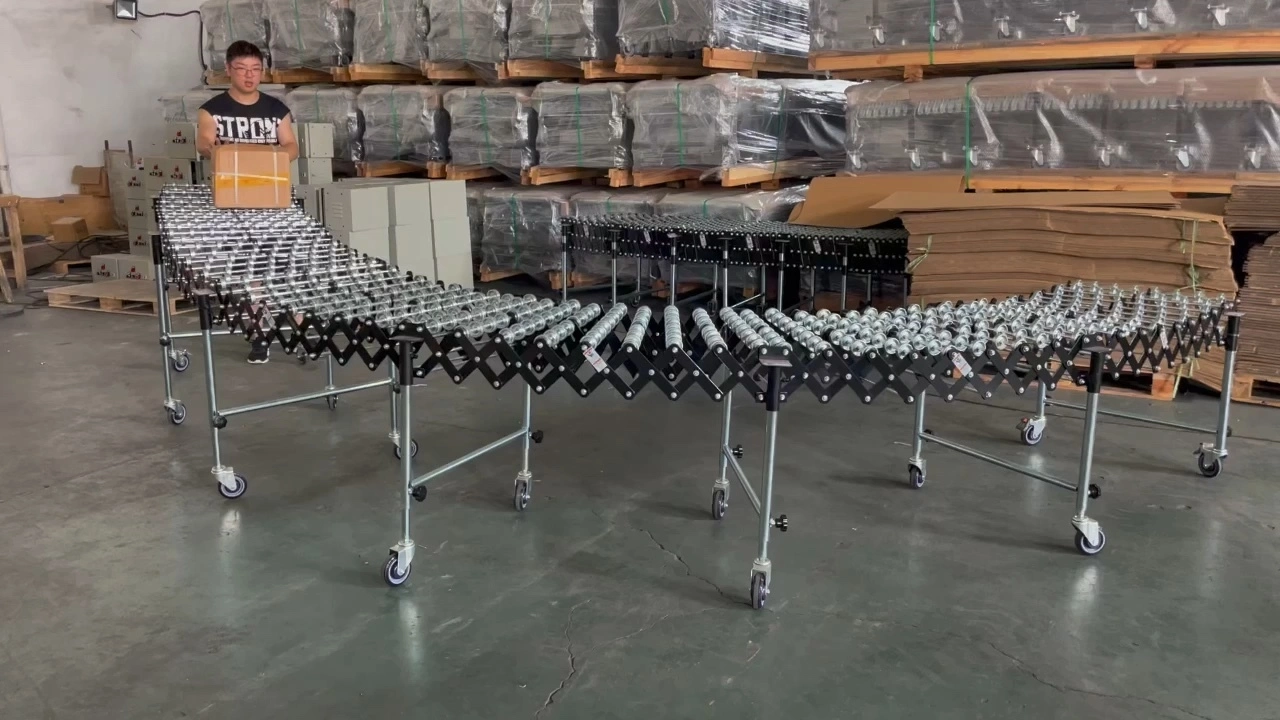

Flexible Gravity Steel Skate Wheel Conveyor

Flexible Gravity Steel Skate Wheel Conveyor is often chosen to convey small & medium sized flat-bottom items in harbor, dock,warehouse/storehouse, factory, etc.It is extendable, retractable and bendable. It can take curve flexibly even in zigzag narrowaisles. The crossed skate wheels make sure that conveyed goods will be automatically oriented and not fall down from sides. Theconveyor largely facilitates goods delivery work.

Specification Effective Width: 600mm Overall Width: 750mm Adjustable Height: 700-1000mm Extendable Length: 2220-6900mm Load Capacity: 40kg/m Caster: 4" swivel lockable casters Side Links: 2.5mm thickness powder coated join plates

50kg/m load capacity

End stop guard

high qualty galvanized steel wheels

Model List

Model	Open Length (mm)	Close Length (mm)	Adjustable Height (mm)	Effective Width (mm)	Wheel Dia (mm)
FGW-S2.5	2500	860	700-1000	600	50
FGW-S3.6	3600	1200	700-1000	600	50
FGW-S4.7	4700	1540	700-1000	600	50
FGW-S5.8	5800	1880	700-1000	600	50
FGW-S6.9	6900	2220	700-1000	600	50
FGW-S8	8000	2560	700-1000	600	50
FGW-S9.1	9100	2900	700-1000	600	50
FGW-S10.2	10200	3240	700-1000	600	50
FGW-S11.3	11300	3580	700-1000	600	50
FGW-S12.4	12400	3920	700-1000	600	50
FGW-S13.5	13500	4260	700-1000	600	50
FGW-S14.6	14600	4600	700-1000	600	50
FGW-S15.7	15700	4940	700-1000	600	50
PS: for conveyor length more than 8m, we will take the conveyor into two or more parts for packing.This way is more safe for shipment and also help save spaces.

Details Images

Easy to take a 180 degree curve

Extendable and expandable

Perfect to transport cartons

End package stop guard is available

50mm diameter galvanized steel wheels

Telescopic steel side links

Adjustable Height: 700-1000mm

Each unit with hooks to quickly joint tow units together

Mobile on 4" swivel casters with brakes

Packing and Shipping

Take off the supporting legs first

Pack the leg kits in a separately cartons

Put the screws, spacers and handles in a small hardware cartons

Pack plastic skate wheel body in carton

Pack steel skate wheel body in cartons

Each cartons fix well with bangdages

Pack plastic skate wheel body in carton

Pack steel skate wheel body in cartons

Each cartons fix well with bangdages

How to set up?

How to choose flexible conveyor model?

● The flexible roller conveyors have a bigger load capacity than the standard flexible skate wheel conveyor.
● Withthe same length,width,height,the standard flexible skate wheel conveyor is more economical than gravity roller units and makes the goods moves smoother.
● Double roller conveyor type makes the goods move smoother and more fluent than the single roller type.
● Any items with an uneven or open buttom,or with a rim on the bottom should be transported on rollers.
● Conveyed items can be wider than the conveyor.Extra wide items like plywood or sheet materials can be moved if carefully centered.
● Typically,3 rollers or 3 skate wheel lines must be beneath the load at any particular time for easy rolling.

Flexible Powered Roller Conveyor-V belt

Flexible Gravity Steel Roller Conveyor

Flexible Steel Skate Wheel Conveyor

Flexible Powered Roller Conveyor-O belt

Flexible Double PVC Roller Conveyor

Flexible Plastic Skate Wheel Conveyor

FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
