    Portable Z Shape Incline Modular Belt Conveyor 6

    PMB

    PLASTIC MESH BELT CONVEYOR

    As one of the modular belt conveyors, This mesh belt conveyor is drives by chain wheels, Mesh Belt Conveyor largely lessens belt running deviation. Its belt is moulded once with plastic material of hygienic standard, with guarantees the good stability, chemical resistance, and friendliness to environment. Therefore, the conveyor is widely employed in the slaughter lines and beverage manufacturing, also welcomed in machine, daily chemical and other industries. Main types include: linear transmission, upgrading transmission, curve transmission, etc. The belts can be added baffles to serve specific purposes.

    PRODUCT PARAMETERS

    Yifan conveyor manufacturer provides quality modular belt conveyors and mesh belt conveyor

    Portable Z Shape Incline Modular Belt Conveyor 7

    Technical Parameters

    Belt Type

    280mm plastic modular belt

    Motor

    0.4kw worm gear reducer

    Power Supply

    220V,single phase,60Hz

    Conveying Speed

    10-15m/min

    Load Capacity

    10-15kg/m

    Frequency Transfer

    DELTA

    Frame and Legs

    Carbon steel


    SHOW DETAILS

    More details about mesh belt conveyor

    Portable Z Shape Incline Modular Belt Conveyor 8
    Adopt gear reducer servo motor
    Portable Z Shape Incline Modular Belt Conveyor 9

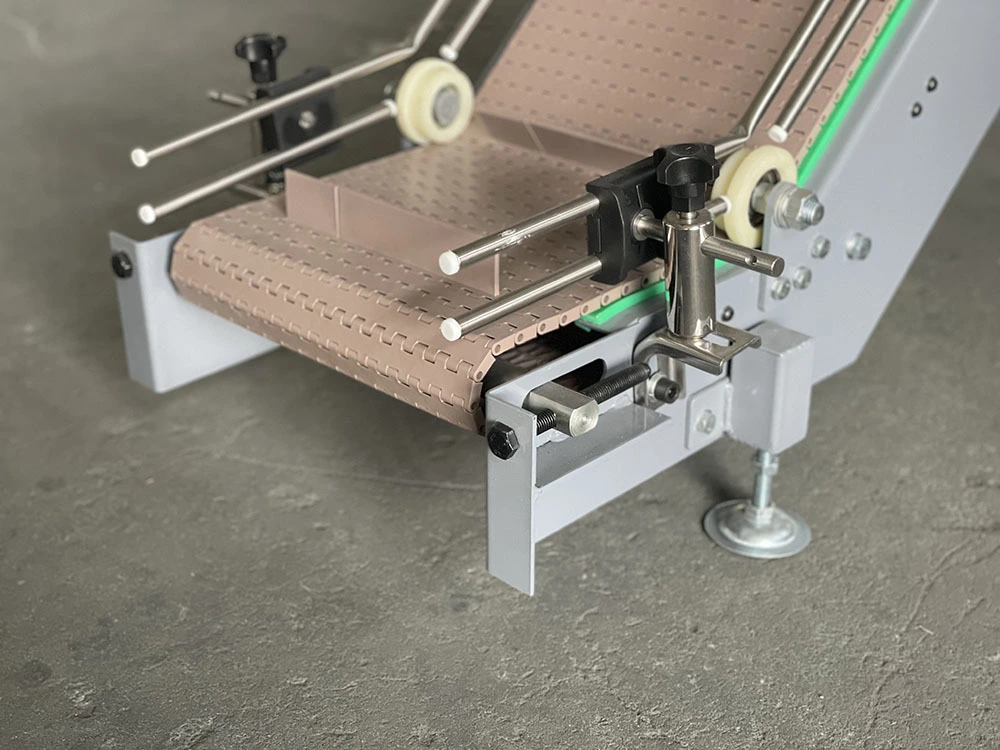

    Plastic modular belt with baffles and side guide rails
    Portable Z Shape Incline Modular Belt Conveyor 10
    Customized low height
