Portable Hydraulic Conveyor Belt

Start Port:

Ningbo

Payment:

30 days

MOQ:

50kg/m

Model:

HBC

Inquiry

Write a Review

HBC

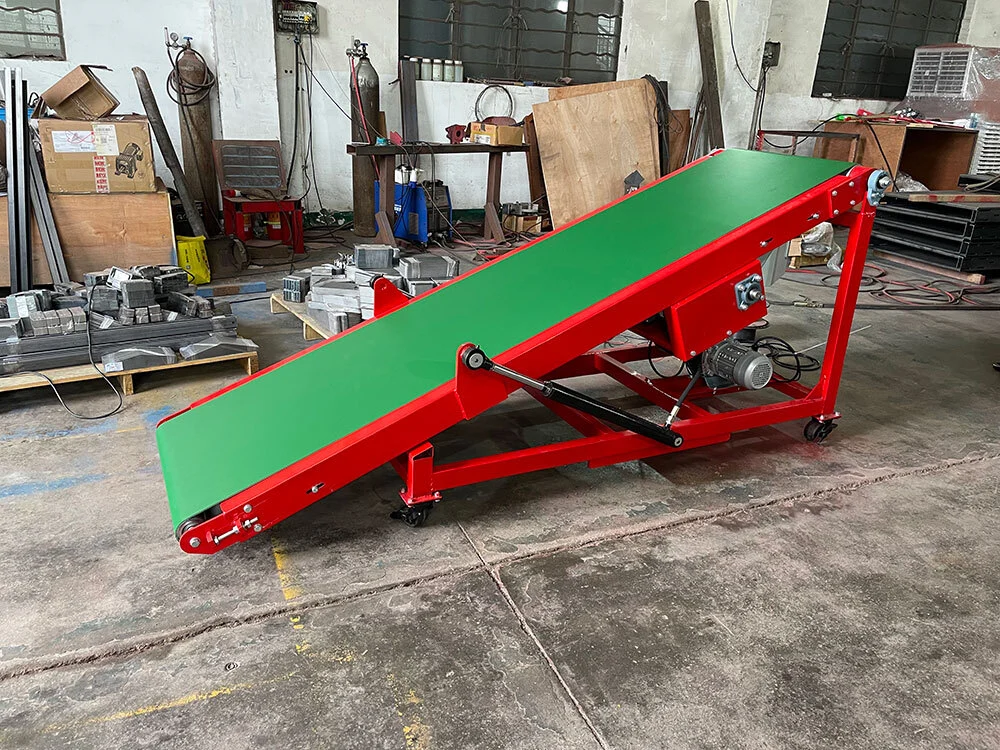

PORTABLE HYDRAULIC CONVEYOR BELT

An inclined belt conveyor belongs to a type of belt conveyor. It is widely used in various industries such as home appliances, electronics, electrical appliances, machinery, tobacco, injection molding, post and telecommunications, printing, food and so on, assembly, testing, debugging, packaging, and transportation of objects.

inclined conveyor has strong conveying capacity, long conveying distance, simple structure, and easy maintenance, and can easily implement programmed control and automatic operation. Continuous or intermittent movement of the conveyor belt is used to convey goods under 100KG or powder or granular goods, and its operation is high speed, smooth and low noise, and it can convey up and downslope.

YiFan Conveyor is the best industrial conveyor belt manufacturers in China We provide an Inclined Belt Conveyor that can be made in Aluminum/steel/stainless steel frame. Different from heavy-duty PVK belt conveyor, this conveyor is designed to transport medium weight cargos of 20-30KGS. A white food-grade PU belt is also available.

PRODUCT PARAMETERS

Belt Spec	600mm anti-skiding PVC belt
Conveyor Length	2400mm
Variable Speed	10-20m/min
Direction	Forward and reverse
Motor Power	0.75kw
Load Capacity	50KG/m
Frequency Inverter	Delta
Voltage	220V/380V
