GRC

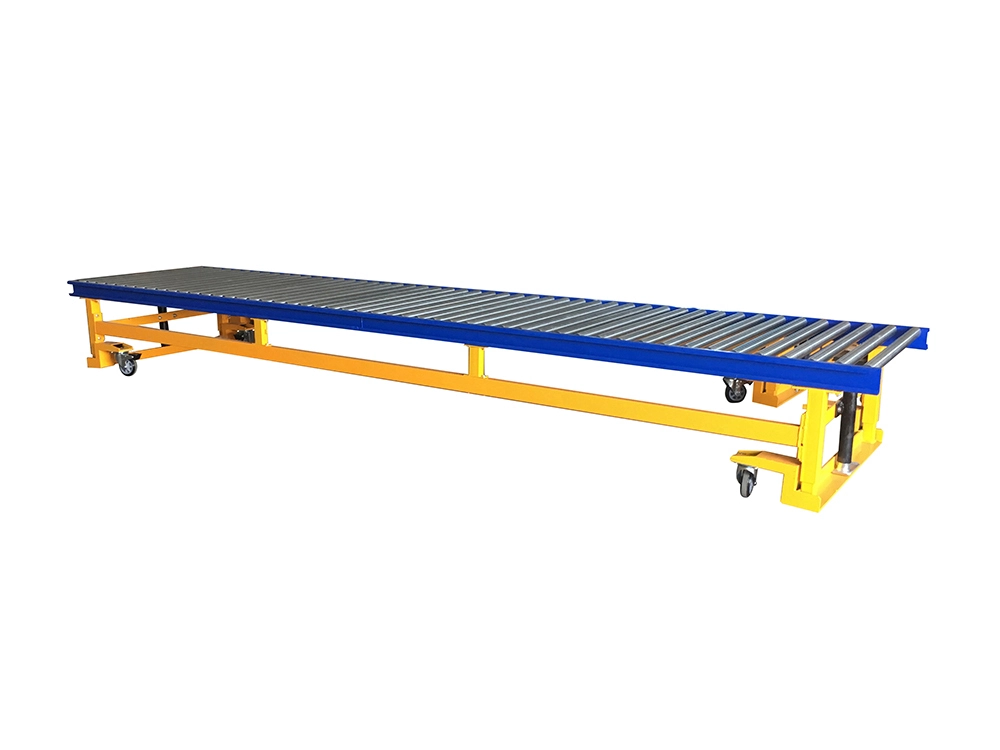

NO POWER GRAVITY ROLLER CONVEYOR TABLE WITH ADJUSTABLE HEIGHT
No power gravity roller conveyor table is one of the most common conveyors applied in conveying flat-bottomed items like cases, boxes and pallets. Small, soft or irregular items are supposed to put on trays or other flat containers. This kind of conveyor is characterized with large and efficient distribution, convenient connection to other lines and easy maintenance. Optional Frame Material: carbon steel (standard), stainless steel, Aluminum, etc. Optional Roller Material: zinc-plated steel (standard),chrome-plated steel, rubber-coated steel, stainless steel, Aluminum, PVC, ABS, etc.The whole conveyor can be adjusted to a slope for loading and unloading cartons into vehicles. |
SHOW DETAILS
PRODUCT PARAMETERS

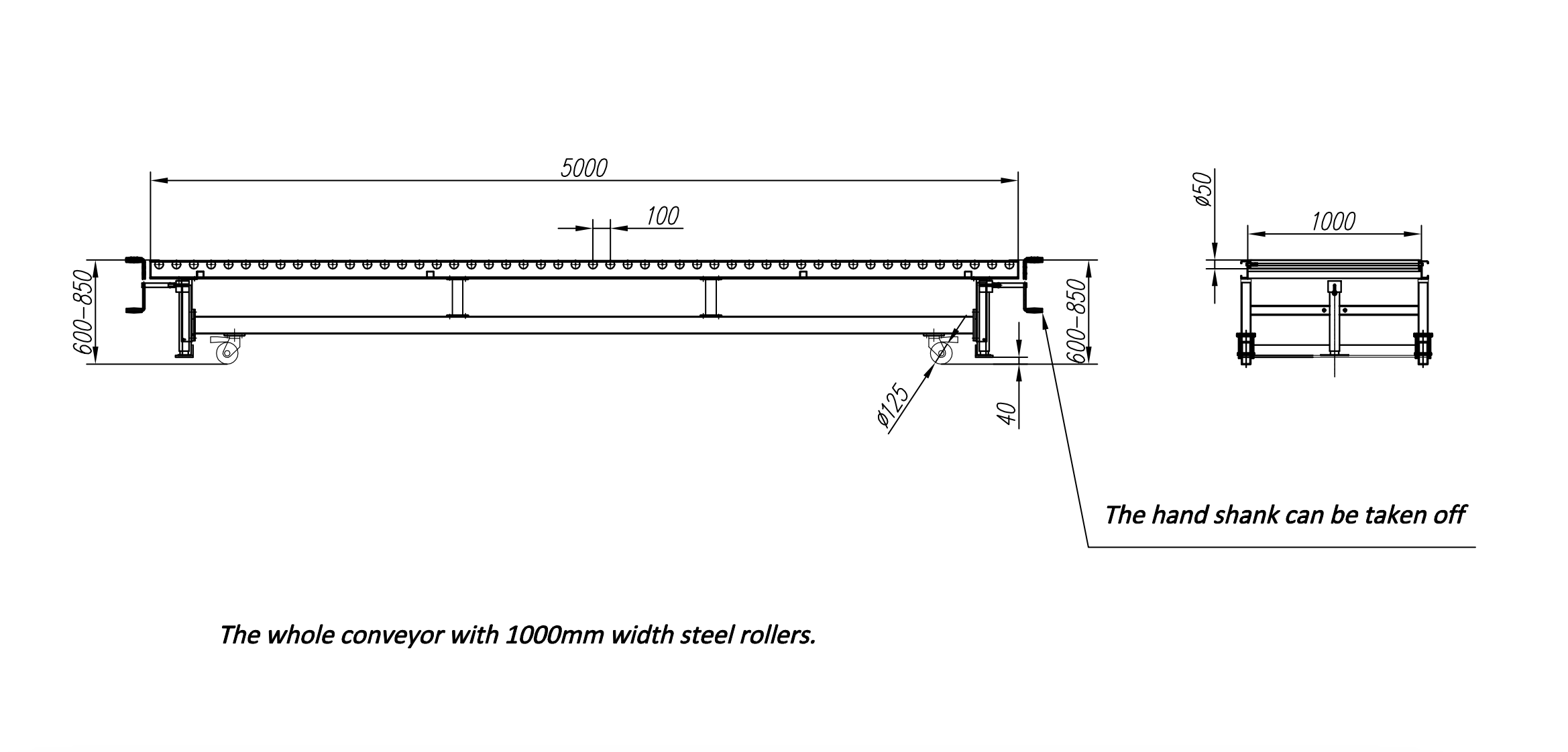

Conveyor Length | 5m |
Effective Width | 1000mm |
Height | 600-850mm |
Roller Diameter | 50mm |
Roller Material | steel |
Frame Material | Steel,painted yellow |
Load Capacity | 50KG/M |
Application 1
Applied in oil factory production line.
Gravity roller conveyor tables are very economical and versatile conveyors with a wide range of applications, designed for light, medium and heavy loads, and can be freely adjusted in height. They have a robust surface and are suitable for conveying cartons, boxes and pallets. Available in a wide range of sizes and styles, they can be used for both temporary use and permanent installations.
