    RCT

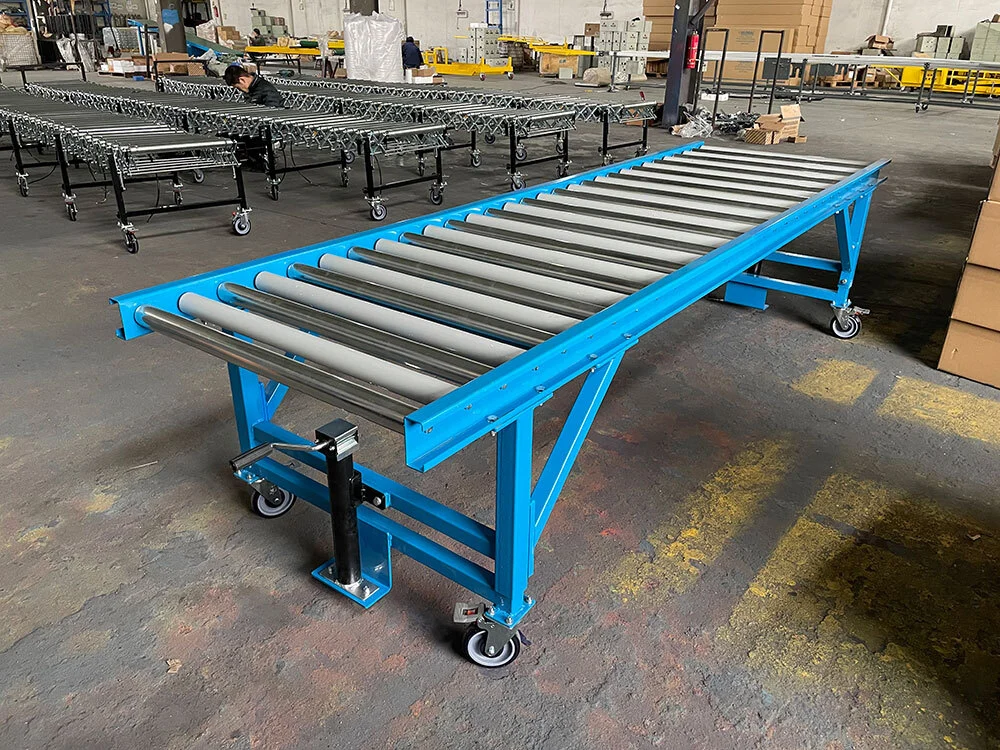

    NO POWER GRAVITY ROLLER CONVEYOR TABLE WITH ADJUSTABLE HEIGHT

    No power gravity roller conveyor table is one of the most common conveyors applied in conveying flat-bottomed items like cases, boxes and pallets. Small, soft or irregular items are supposed to put on trays or other flat containers. This kind of conveyor is characterized with large and efficient distribution, convenient connection to other lines and easy maintenance. Optional Frame Material: carbon steel (standard), stainless steel, Aluminum, etc. Optional Roller Material: zinc-plated steel (standard),chrome-plated steel, rubber-coated steel, stainless steel, Aluminum, PVC, ABS, etc.The whole conveyor can be adjusted to a slope for loading and unloading cartons into vehicles.

    SHOW DETAILS

    No Power Gravity Roller Conveyor Table with Adjustable Height 8
    Reinforced legs
    No Power Gravity Roller Conveyor Table with Adjustable Height 9
    Easy to adjust height
    No Power Gravity Roller Conveyor Table with Adjustable Height 10
    Mobile one 150mm castors
    No Power Gravity Roller Conveyor Table with Adjustable Height 11
    With both steel and PVC rollers

    PRODUCT PARAMETERS

    Conveyor Length

    3m

    Effective Width

    600mm

    Height

    700-900mm

    Roller Diameter

    50mm

    Roller Material

    steel and PVC

    Frame Material

    Steel,painted blue

    Load Capacity

    50KG/M

    Application 1

    Applied in oil factory production line.

    Gravity roller conveyor tables are very economical and versatile conveyors with a wide range of applications, designed for light, medium and heavy loads, and can be freely adjusted in height. They have a robust surface and are suitable for conveying cartons, boxes and pallets. Available in a wide range of sizes and styles, they can be used for both temporary use and permanent installations.

    No Power Gravity Roller Conveyor Table with Adjustable Height 12
    No Power Gravity Roller Conveyor Table with Adjustable Height 13
    No Power Gravity Roller Conveyor Table with Adjustable Height 14
    No Power Gravity Roller Conveyor Table with Adjustable Height 15
    No Power Gravity Roller Conveyor Table with Adjustable Height 16
