No Power Flexible Expandable Gravity Plastic Skate Wheel Roller Conveyor For Warehouse1
5.0
Start Port:
Sea freight
MOQ:
[{'sku_name': '40KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'SLAT CONVEYOR', 'sku_img': None, 'sku_id': '191284229:430360791;'}]
Load Capacity:
[{'sku_name': 'FGW-P6', 'sku_img': None, 'sku_id': '3:-1;'}]
Lead_Time:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Certification:
Customized logo (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:China
Brand Name:YiFan
Power:no power
Dimension(L*W*H):L6900*W600*H700/1000 mm
Warranty:1 Year
Width or Diameter:Size customization
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Roller, Wheel
Extendable Length:2220-6900mm
Adjustable Height:700-1000mm
Effective Width:600mm
Load Capacity:40kg/m
Wheel Diameter:50mm
Wheel Material:plastic
Roller Center Gap:Max.120mm
Side Frame:2.5mm thickness steel plates
Supporting Legs:galvanized round steel tubes
Caster:4'' swivel lockable caster
After Warranty Service:Video technical support, Online support, Spare parts
Local Service Location:None
After-sales Service Provided:Online support
Product Overview
FGW-P6 Flexible Skate Wheel Gravity Conveyor
Flexible Skate Wheel Conveyor is often chosen to convey small & medium sized flat-bottom items in harbor, dock,
warehouse/storehouse, factory, etc.It is extendable, retractable and bendable. It can take curve flexibly even in zigzag narrow aisles. The crossed skate wheels make sure that conveyed goods will be automatically oriented and not fall down from sides. The skate wheel conveyor largely facilitates goods delivery work.
warehouse/storehouse, factory, etc.It is extendable, retractable and bendable. It can take curve flexibly even in zigzag narrow aisles. The crossed skate wheels make sure that conveyed goods will be automatically oriented and not fall down from sides. The skate wheel conveyor largely facilitates goods delivery work.
Technical Parameters
Effective Width | 600mm |
Overall Width | 750mm |
Adjustable Height | 700-1000mm |
Extendable Length | 2220-6900mm |
Load Capacity | 40kg/m |
Caster | 4" swivel lockable casters |
Side Links | 2.5mm thickness powder coated join plates |
Features
1.Rugged heavy duty self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow
2.Axle centers variable from 1-1/4" to 4" for 7" minimum package size
3.40kg per linear meter load capacity
4.Heavy duty powder coated steel side plates ensure maximum strength and durability.
5.Includes convenient end box-stop and hooks to connect additional conveyors.
6.Adjustable height achieve maximum gravity flow and create banked curves:700-1000mm as standard,800-1200mm (31-1/2" to 47-1/4") as option.
7.Simply insert galvanized telescopic leg sets into integral sockets.
8.Easy to move around on Dia 100mm(4") heavy duty lockable swivel polyurethane casters.
9.Can be made in custom lengths to suit your individual conveying application
2.Axle centers variable from 1-1/4" to 4" for 7" minimum package size
3.40kg per linear meter load capacity
4.Heavy duty powder coated steel side plates ensure maximum strength and durability.
5.Includes convenient end box-stop and hooks to connect additional conveyors.
6.Adjustable height achieve maximum gravity flow and create banked curves:700-1000mm as standard,800-1200mm (31-1/2" to 47-1/4") as option.
7.Simply insert galvanized telescopic leg sets into integral sockets.
8.Easy to move around on Dia 100mm(4") heavy duty lockable swivel polyurethane casters.
9.Can be made in custom lengths to suit your individual conveying application
Details Image
skate wheel
caster
50mm diameter steel wheels

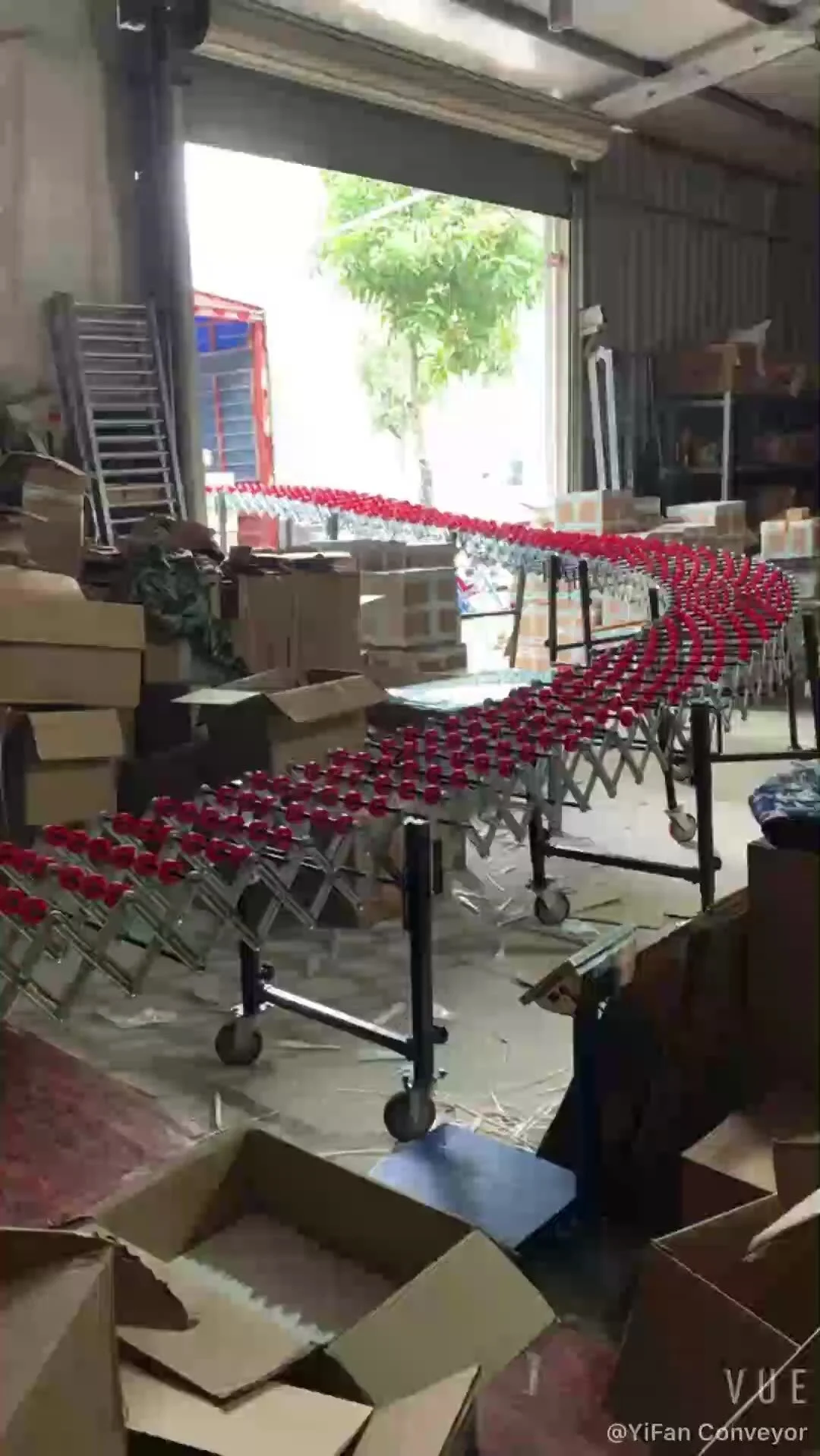

Easy to take a 180 degree curve
End package stop guard is available
Each unit with hooks to quickly joint tow units together
Successful Project
Company Profile
FAQ
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service？
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service？
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.
How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
