    Mobile Telescopic Belt Conveyor with Tail Boom 5

    MTBC-3S-5/7-800

    MOBILE TELESCOPIC BELT CONVEYOR WITH TAIL BOOM

    Telescopic Belt Conveyor is automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.

    PRODUCT PARAMETERS

    Mobile Telescopic Belt Conveyor with Tail Boom 6

    Mobile Telescopic Belt Conveyor with Tail Boom

    Fixed Length

    5m

    Extension Length

    7m

    Total Length

    12m

    Belt Spec

    800mm width PVK belt

    Loading Height

    775mm

    Discharge Height

    1175mm-2930mm

    Belt Direction

    Forward & reverse

    Max. Load Capacity

    60kg/m

    Belt Driven Motor

    1.5kw, SEW

    Telescopic Motor

    0.75kw, SEW

    Hydraulic Power Pack

    1.5kw

    Machine Total Power

    3.75 kw

    Main Electric Components

    Schneider

    Telescopic Chain

    Donghua, Hangzhou

    Power Cord Length

    10m

    Standard Color

    BLUE, RAL5005

    Voltage

    380V, three phase, 50Hz

    SHOW DETAILS

    Mobile Telescopic Belt Conveyor with Tail Boom 7
    Adjust height by hydraulic power unit
    Mobile Telescopic Belt Conveyor with Tail Boom 8
    .With main control box in fixed section
    Mobile Telescopic Belt Conveyor with Tail Boom 9
    Mobile on heavy duty swivel wheels
    Mobile Telescopic Belt Conveyor with Tail Boom 10
    Easily combine with additional flexible powered roller conveyor

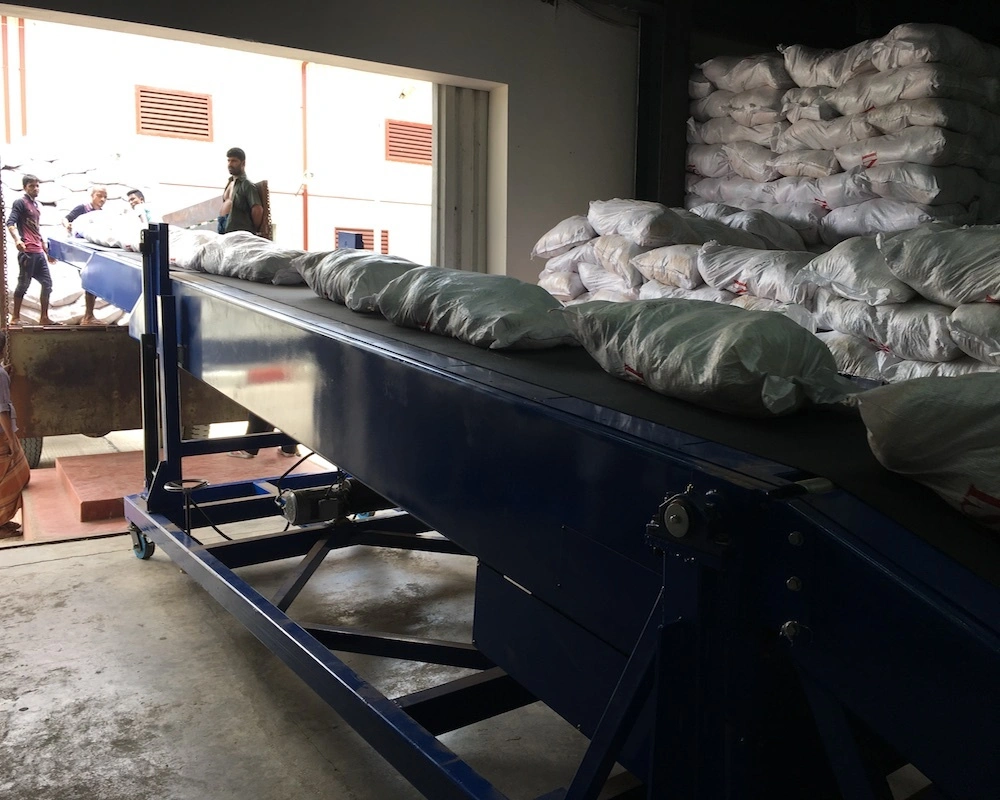

    Application 1

    Loading bags from warehouse directly to trucks.

    Mobile Telescopic Belt Conveyor with Tail Boom 11
    Mobile Telescopic Belt Conveyor with Tail Boom 12
    Mobile Telescopic Belt Conveyor with Tail Boom 13
    Mobile Telescopic Belt Conveyor with Tail Boom 14
    Mobile Telescopic Belt Conveyor with Tail Boom 15
