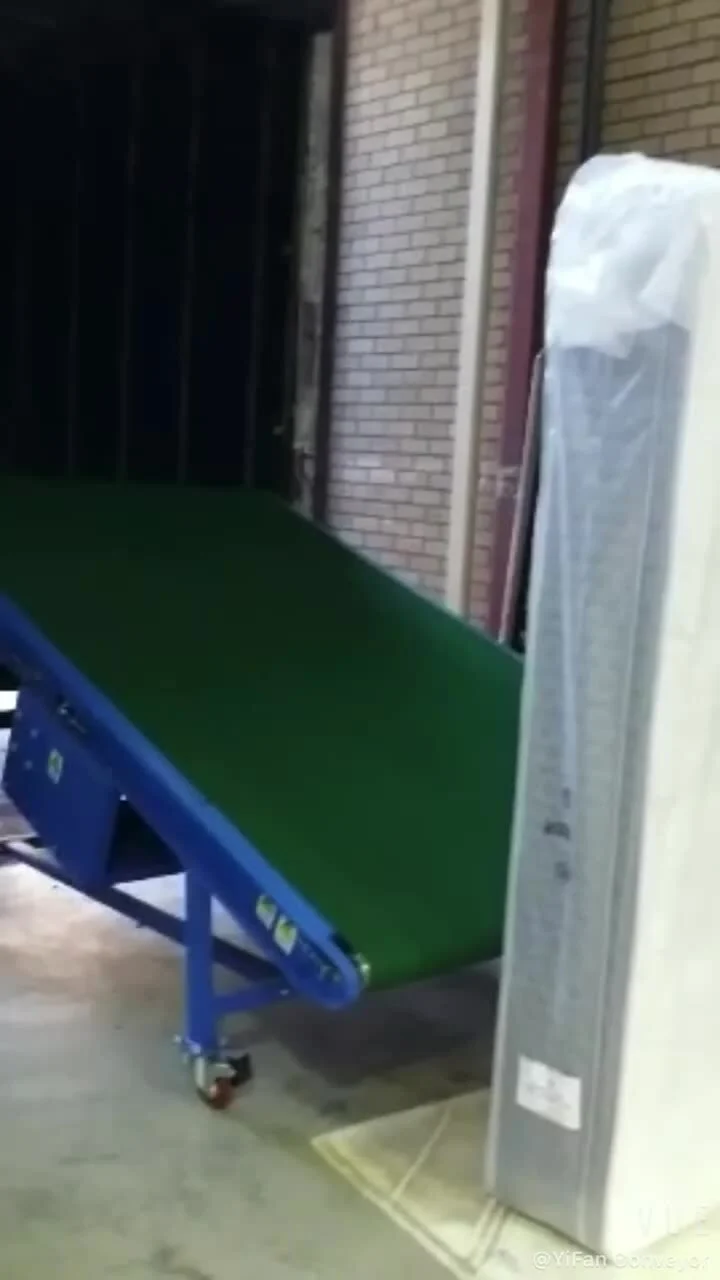

Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 1
Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 2
Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 3
Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 4
Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 5
Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 6
Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 7
Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 1
Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 2
Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 3
Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 4
Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 5
Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 6
Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1 7

Inclined portable conveyor belt for conveying cartons,boxes,bags into trucks containers1

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    Showroom Location:None
    Condition:New
    Material:Carbon steel
    Material Feature:Fire Resistant
    Structure:Belt conveyor
    Place of Origin:NINGBO,China
    Brand Name:YiFan
    Voltage:220V/380V
    Power:1.5kw
    Dimension(L*W*H):customed size
    Warranty:1 Year
    Width or Diameter:600mm
    Machinery Test Report:Provided
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Bearing, Gear
    Weight (KG):300 kg
    Belt Material:PVC
    Frame Material:steel
    Motor Power:1.5kw
    Frequency Inverter:Delta
    Control Panel:Forward,Stop,Reverse,emergency stop
    Castor:100mm PU material
    After-sales Service Provided:Online support
    After sale service:free spare parts
    Warranty Period:1 year
    Video Description
    Product Description
    PVC Belt Conveyor is widely applied in light industry, food, medicine and daily chemical industries. The conveyor can be equipped with working tables on both sides. With optional lights, air tubes, tool hooks, operation boards, instrument desks and sockets, it can act as various assembly lines. The advantages of belt conveyors are large and stable distribution, little noise, simple structure, easy maintenance, low energy consumption and cost. Belt conveyors can be customized in different specifications, materials, load capacity and other special functions.
    Belt Width
    300-1000mm
    Conveyor Length
    0.5-40m
    Variable Speed
    10-20m/min
    Motor Power
    0.4/0.75/1.5/2.2kw
    Load Capacity
    30KG/m
    Frequency Inverter
    Delta
    Voltage
    220V/380V
    Other Parts
    light, side platform, goods shelf, operation board, tool plate, etc.
    Product Overview
    Details Image





    Driven system
    The conveyor use 1.5kw motor





    Conveyor motor
    The conveyor use 1.5kw motor




    Adjustable height
    The conveyor with height adjustable system





    PVC belt
    Use rough top PVC belt to avoid slipping





    Mobile on wheels
    Dia 150mm universal swivel castors
    Packing and Shipping
    Other Type Belt Conveyor

    PVC belt conveyor

    This is the most widely used conveyor for all industries.

    Heavy duty PVK belt conveyor

    With good load and stable performance, it is widely applied in courier company distribution center.

    Belt conveyor with working tables

    It is suitable for factory production and packing line.

    Belt curve conveyor

    It solves the problem of transport cargo in warehouse bend corner

    Aluminum belt conveyor

    Nice figure and easy set set up

    Portable inclined belt conveyor

    It can be used for loading unloading trucks and also used for transport boxes/bags from first floor to second floor.

    Stainless steel belt conveyor

    Stainless steel 304 frame combine with white food grade belt, it is suitable for food factory.

    Sidewall skirt belt conveyor

    This conveyor is suitable for conveing small items, size can be customized.

    Trough belt conveyor

    This conveyor is suitable to transport bulk cargo.
    Customer Case

    Ane Express Company

    SF Express Company

    Courier company distribution center

    E-commerce warehouse

    Stainless steel products factory

    Two level belt conveyor

    Mobile belt conveyor for mezzanine

    Fixed belt conveyor for mezzanine

    Company Profile
    FAQ

    Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

    How long is the production time?
    YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

    What is the MOQ?
    YIFAN: 1 unit

    Can your company provide OEM & ODM service
    YIFAN: yes

    Can you do customized conveyors?
    YIFAN: yes

    Do you offer installation service abroad?
    YIFAN: yes

    What is the payment terms?
    YIFAN: T/T,LC,

    What is the delivery port?
    YIFAN: Ningbo/Shanghai

    How many years have you been in this industry?
    YIFAN: 10 years

    What is the HS code?
    YIFAN: 84283300,84283920,84283990

    Is YIFAN a trading company or factory?
    YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

    Which industry can your conveyors be applied to?
    YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
    YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

    The product has become a necessity for the way we live today. It either reduces or eliminates the amount of human work required to accomplish a task during production. The product has reduced the need for less-skilled workers and increased the skill level required for the remaining workers in production.
