Flexible Skate Wheel Conveyor

Home  > new category  > Flexible Skate Wheel Conveyor  >

Hot sale high quality gravity flexible expandable unloading conveyor

这里可以自定义设置
Hot sale high quality gravity flexible expandable unloading conveyor
B站不支持收货地址
B站不支持库存规格
Type
Gravity Conveyor
Load Capacity
50kg/m
Model Number
FGW-LZ
shipping
Sea freight
Customization
Customized logo (Min. Order: 4 Sets),Customized packaging (Min. Order: 4 Sets),Graphic customization (Min. Order: 20 Sets)
Lead_Time
1 - 20(Sets):30(days),>20(Sets):Negotiable(days)
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail
Showroom Location:None
Condition:New
Material:Plastic
Material Feature:Oil Resistant
Structure:Conveyor System
Place of Origin:NINGBO,China
Brand Name:YiFan
Power:0
Dimension(L*W*H):Variable
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Bearing
Weight (KG):200 kg
After-sales Service Provided:free spare parts
Effective Width:500mm,600mm
Adjustable Height:600-800mm
Extendable Length:1500-6000mm
Video Description
Product Overview

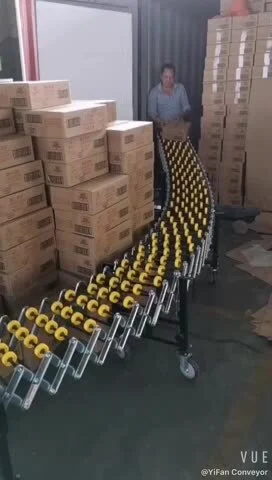

Flexible Gravity Plastic Skate Wheel Conveyor

Gravity flexible plastic skate wheels conveyor is designed for handling of small-and medium-sized cartons/boxes. It is made of ABS material.The structure remains integrated when laying out according to complete expansion of single curve or composite curve remains integrated. When extended these expandable conveyor are highly useful.
Product Paramenters
Model
Close Length
(mm)
Open Length
(mm)
Width
(mm)
Adjustable Height
(mm)
Max.Load
(kg/m)
FGW-LZ2.4
600
2400
600
700-1000
50
FGW-LZ3.6
900
3600
600
700-1000
50
FGW-LZ4.8
1200
4800
600
700-1000
50
FGW-LZ6
1500
6000
600
700-1000
50
FGW-LZ7.2
1800
7200
600
700-1000
50
FGW-LZ8.4
2100
8400
600
700-1000
50
Details Image
ABS plastic skate wheels with steel ball bearings.
With strong double H legs.
Curved reinforced side links with better load.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Hot Products


Flexible Power Roller Conveyor --O Belt.
O Belt Flexible power roller conveyor is a kind of telescopic power automatic roller conveyor, the conveying speed and supporting leg height can be adjusted.Can be used for warehouse, workshop, factory, port, wharf and other flat bottom goods centralized transport.

Flexible Power Roller Conveyor --V Belt.
V Belt Flexible Motorized Roller Conveyor is more strong than O Belt type. Loading capacity is better than O Belt type.
The side links and legs joint structure is reinforced.
Also suitable for warehouse, workshop, factory, port, wharf and other flat bottom goods centralized transport.

V-Belt Flexible Rubber Coated Roller Conveyor
V-belt flexible rubber coated roller conveyor is a kind of telescopic power automatic roller conveyor, turning and bending are very flexible. Speed and support leg height can be adjusted.Can be used for warehouse, workshop, factory, port, wharf and other
places flat bottom distribution transportation, to meet the convenience, fast, efficient distribution of goods.

Flexible Gravity Steel Roller Conveyor
Flexible gravity steel roller conveyor is specially designed for conveying different sizes of boxes, boxes, cartons and other flat
base load.This conveyor is very easy to operate quickly in and out of trucks faster, safer and easier to load and unload materials.Suitable for warehouse, airport, wharf, etc.
FAQ
1.How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

2.What is the MOQ?
YIFAN: 1 unit

3.Can your company provide OEM & ODM service?
YIFAN: yes

4.Can you do customized conveyors?
YIFAN: yes. Our products can be customized. Please provide your type of loading, size and packaging method. If more details could
be provided that would be even better. For example, pictures, and the order of loading traffic flow.

5.Do you offer installation service abroad?
YIFAN: yes

6.What is the payment terms?
YIFAN: T/T,LC,and we also accept trade assurance from Alibaba.

7.What is the delivery port?
YIFAN: Ningbo/Shanghai
