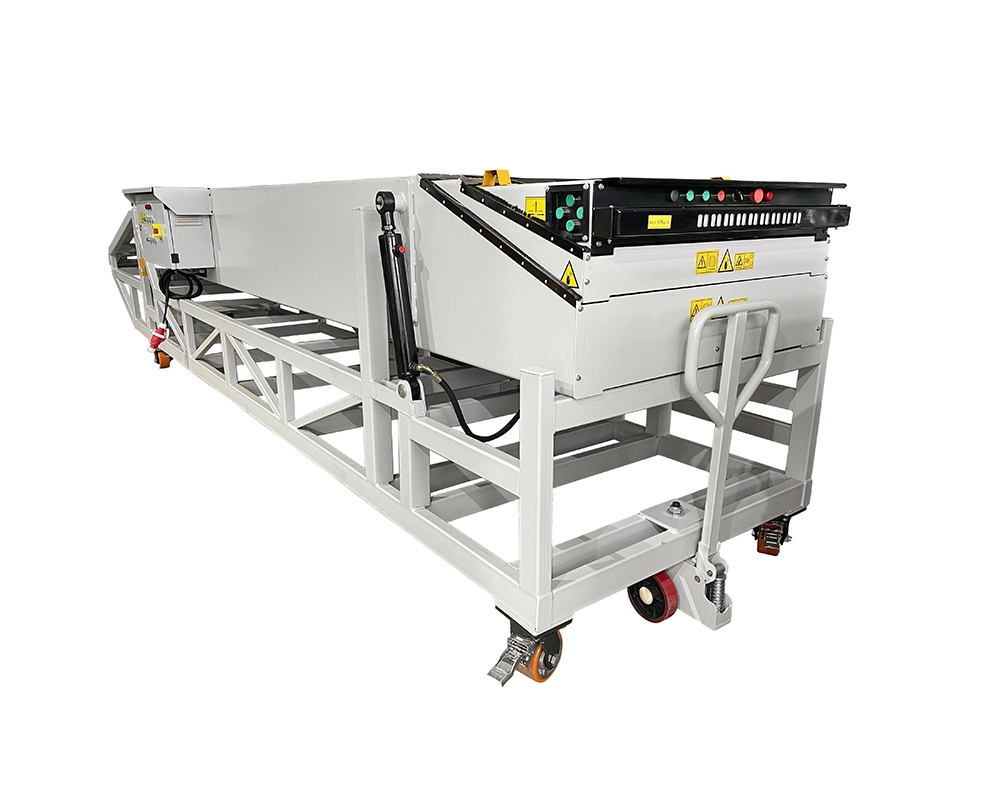

High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 1
High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 2
High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 3
High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 4
High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 5
High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 1
High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 2
High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 3
High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 4
High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 5

High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor

    oops...!

    no product data.

    Go to homepage
    High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 6

    ITBC-3S-5/7-800

    Yifan telescopic belt conveyor with 3 sections,loading and unloading safely and efficiently,its advantage is that it is in line with ergonomic operating conditions.Through joystick or buttons,the telescopic belt conveyor can reach any position that was needed by the operator.The goods can be efficiently and easily be loaded and unloaded through arbitrary stretching move.The extending or retracting movement was feedback for the operator through electric fast response,and the users can choose our products model according to the length of the truck,they also can contact our sales team,and get a reasonable proposal from us in addition,on our website,we can offer guide of standard solution.If you have any question,please tell us your requirement,we will proposal safe and economic solutions.

    SHOW DETAILS

    High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 7
    Front control panel for adjust length and height, control loading and unloading direction
    High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 8
    General Control Box
    High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 9
    With package end stop sensors
    High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 10
    Reinforced conveyor chassis
    High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 11
    Hydraulic system for lifting

    MODEL LIST

    Model No.

    Fixed Length

    Extension

    Total Length

    Tail Boom

    Loading Height

    Infeed Height

    Belt Width

    ITBC-3S-4.5/5.8

    4.5m

    5.8m

    10.3m

    3.5m

    1.95m

    750mm

    800mm

    ITBC-3S-6/8.5

    6m

    8.5m

    14.5m

    4m

    2m

    750mm

    800mm

        ITBC-3S-5/7

    5m

    7m

    12m

    4m

    2m

    750mm

    800mm

    ITBC-4S-5/10

    5m

    10m

    15m

    4m

    2.3m

    750mm

    800mm

    ITBC-4S-6/12

    6m

    12m

    18m

    4m

    2.3m

    750mm

    800mm

    ITBC-4S-7/14

    7m

    14m

    21m

    4m

    2.3m

    750mm

    800mm


    REFERENCE DRAWINGS



    High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 12

    High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 13

    High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 14

    High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 15

    High Chassis Telescopic Belt Conveyor Expandable Loading Conveyor 16
