    V BELT FLEXIBLE MOTORIZED RUBBER COATED ROLLER CONVEYOR

    V Belt Flexible Powered Rubber Coated Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height. Having enough power supply by one mini motor per section, it is well qualified to intensively transport goods especially with flat bottom in the warehouse/storehouse, workshop, factory, harbor, dock, etc. In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line. It satisfies the easy, quick and efficient goods delivery.

    WechatIMG13593详情图
    WechatIMG13593详情图

    PRODUCT PARAMETERS

    Belt

    high quality V belt

    Roller

    dia 55mm rubber coated roller, Max. gap138mm center to center

    Motor

    90W/120W electronic governor motor

    Frame

    5mm thickness galvanized curved join plates with better load

    Leg

    32×32 powder coated tube with 25×25 galvanized tube inside

    Caster

    5" high quality swivel lockable polyurethane casters

    Control Box

    Forward/Stop/Reverse, Emergency Stop, Speed Knob

    Frequency Inverter

    Delta

    MODEL LIST

    Model

    Open Length
    (mm)

    Close Length
    (mm)

    Rpller Width
    (mm)

    Adjustable Height
    (mm)

    Variable Speed
    (m/min)

    Max.Load
    (kg/㎡)

    Motor Power
    (w)

    FPR-RV-4.8

    4800

    2200

    600/800

    700-1000

    10-20

    100

    450

    FPR-RV-6

    6000

    2750

    600/800

    700-1000

    10-20

    100

    540

    FPR-RV-7.2

    7200

    3300

    600/800

    700-1000

    10-20

    100

    630

    FPR-RV-8.4

    8400

    3850

    600/800

    700-1000

    10-20

    100

    720

    FPR-RV-9.6

    9600

    4400

    600/800

    700-1000

    10-20

    100

    810

    FPR-RV-10.8

    10800

    4950

    600/800

    700-1000

    10-20

    100

    900

    FPR-RV-12

    12000

    5500

    600/800

    700-1000

    10-20

    100

    990

    SHOW DETAILS

    Both end with Emergency Stop Button~1
    Both end with Emergency Stop Button
    Control Box with Forward_Stop_Reverse,Emergency St
    Control Box with Forward_Stop_Reverse,Emergency Stop
    Mobile on universal castors~1
    Mobile on universal castors

    Application 1

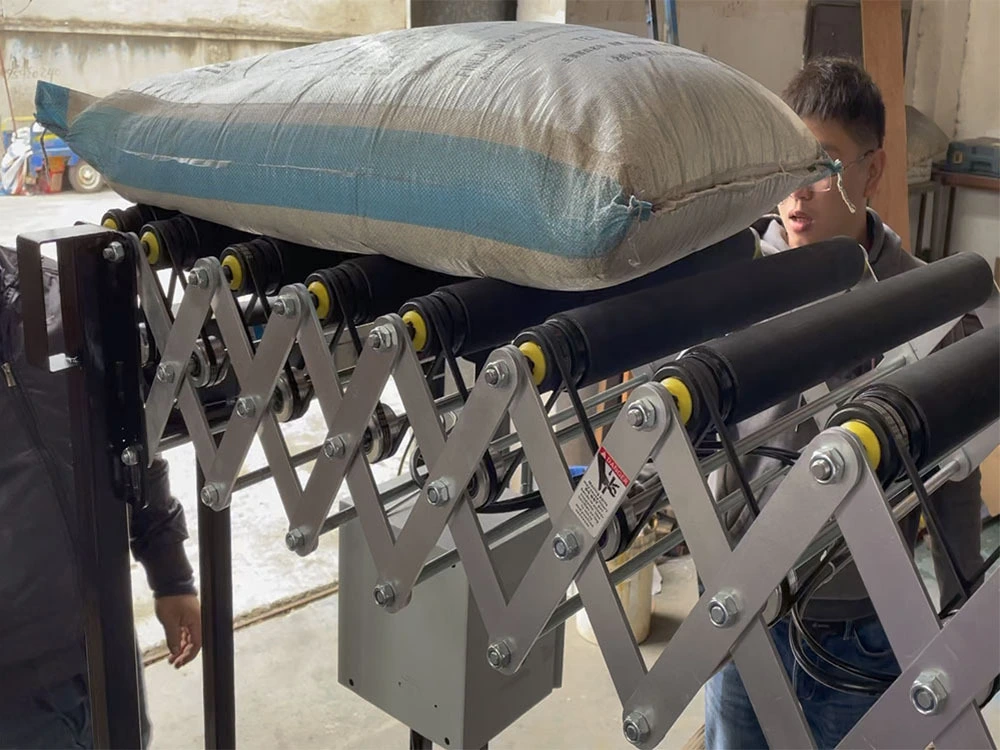

    Rubber coated rollers with good friction to bags. This conveyor usually be used for loading and unloading bags.

    High Chassis Extendable Powered Rubber Roller Conveyor for 50KG Bags 10
    WechatIMG13593详情图
    WechatIMG13593详情图
    With hydraulic lift system~1
    With hydraulic lift system~1
    Both end with Emergency Stop Button~1
    Both end with Emergency Stop Button~1
    WechatIMG13593详情图
    WechatIMG13593详情图

    Application 2

    Loading 50KG bags from warehouse directly into trucks

    High Chassis Extendable Powered Rubber Roller Conveyor for 50KG Bags 15

    Application 3

    Unloading fabric rolls from containers to warehouse in Textile and garment factory

    High Chassis Extendable Powered Rubber Roller Conveyor for 50KG Bags 16
    WechatIMG13593详情图
    WechatIMG13593详情图
