Belon de convoyeur de déchargement de sac de 100 kg, système de convoyeur extensible puissant | FPR-PV
FPR-PV
FLEXIBLE MOTORIZED PU COATED ROLLER CONVEYOR
V Belt Flexible Powered Rubber Coated Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height. Having enough power supply by one mini motor per section, it is well qualified to intensively transport goods especially with flat bottom in the warehouse/storehouse, workshop, factory, harbor, dock, etc. In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line. It satisfies the easy, quick and efficient goods delivery.
Yifan Conveyor presents a cutting-edge loading and unloading solution that revolutionizes the handling of cement bags in logistics and construction operations. With its state-of-the-art design and precision engineering, the Yifan Conveyor sets a new standard for efficiency and safety in material handling. This innovative system not only streamlines the process of transferring heavy loads but also enhances productivity by reducing manual labor and optimizing workflow. Trusted by industry professionals worldwide, the Yifan Conveyor is synonymous with reliability, durability, and top-notch performance, making it a preferred choice for businesses looking to improve their operational efficiency and maintain a competitive edge in the market.
TECHNICAL PARAMETERS
Belt | high quality V belt |
Roller | dia 55mm rubber coated roller, Max. gap138mm center to center |
Motor | 90W/120W electronic governor motor |
Frame | 5mm thickness galvanized curved join plates with better load |
Leg |
32×32 powder coated tube with 25×25 galvanized tube inside
|
Caster | 5" high quality swivel lockable polyurethane casters |
Control Box | Forward/Stop/Reverse, Emergency Stop, Speed Knob |
Frequency Inverter | Delta |
MODEL LIST
Modelo |
Open Length
|
Close Length
|
Rpller Width
|
Altura ajustável
|
Variable Speed
|
Max.Load
|
Motor Power
|
FPR-PV-4.8 | 4800 | 2200 | 600/800 | 700-1000 | 10-20 | 100 | 450 |
FPR-PV-6 | 6000 | 2750 | 600/800 | 700-1000 | 10-20 | 100 | 540 |
FPR-PV-7.2 | 7200 | 3300 | 600/800 | 700-1000 | 10-20 | 100 | 630 |
FPR-PV-8.4 | 8400 | 3850 | 600/800 | 700-1000 | 10-20 | 100 | 720 |
FPR-PV-9.6 | 9600 | 4400 | 600/800 | 700-1000 | 10-20 | 100 | 810 |
FPR-PV-10.8 | 10800 | 4950 | 600/800 | 700-1000 | 10-20 | 100 | 900 |
FPR-PV-12 | 12000 | 5500 | 600/800 | 700-1000 | 10-20 | 100 | 990 |
SHOW DETAILS
Aplicativo 1

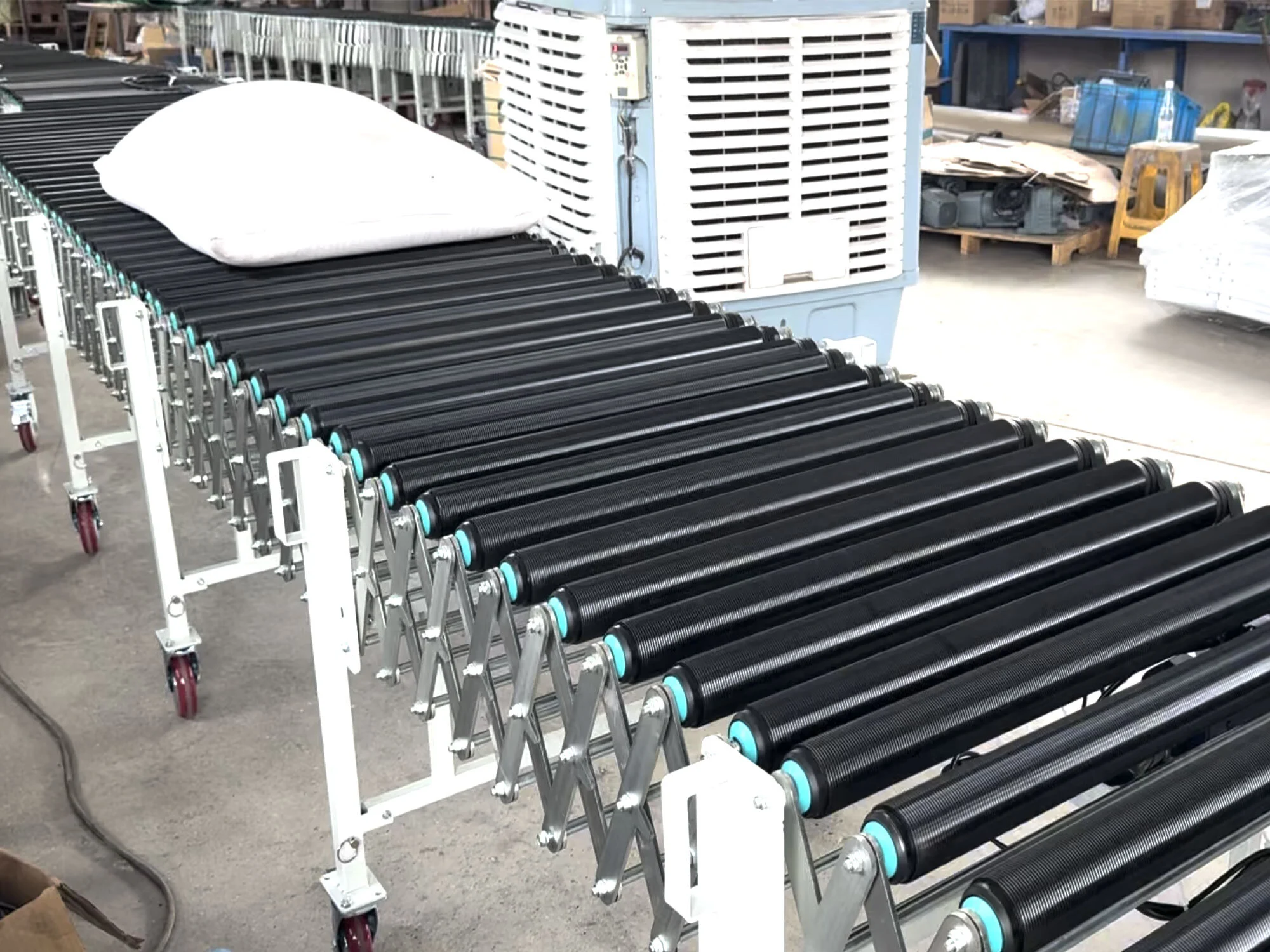

Rubber coated rollers with good friction to bags. This conveyor usually be used for loading and unloading bags.
Aplicativo 2
Loading 50KG bags from warehouse directly into trucks
Aplicativo 3
Unloading fabric rolls from containers to warehouse in Textile and garment factory
