Flow rail long skate wheel conveyor-YiFan Conveyor

Product Overview

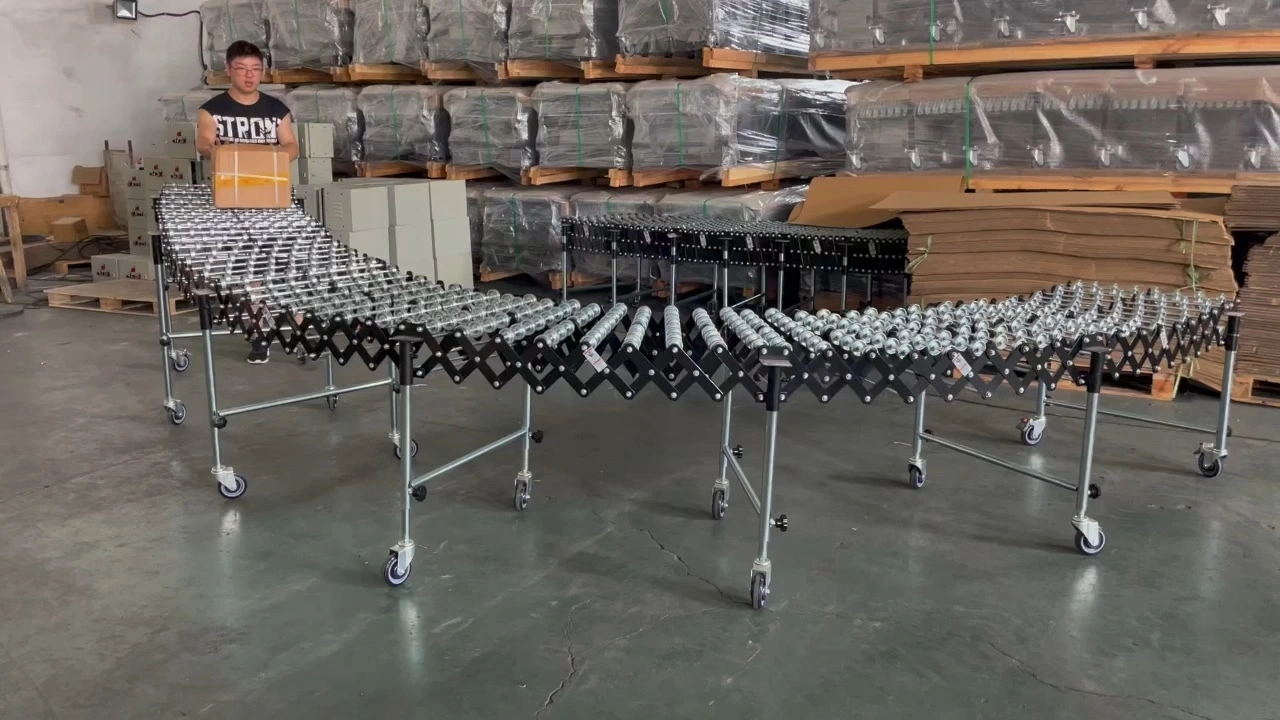

FGW-S6 Flexible Skate Wheel Gravity Conveyor

Flexible Skate Wheel Conveyor is often chosen to convey small & medium sized flat-bottom items in harbor, dock,
warehouse/storehouse, factory, etc.It is extendable, retractable and bendable. It can take curve flexibly even in zigzag narrow aisles. The crossed skate wheels make sure that conveyed goods will be automatically oriented and not fall down from sides. The skate wheel conveyor largely facilitates goods delivery work.

Technical Parameters

Effective Width	600mm
Overall Width	750mm
Adjustable Height	700-1000mm
Extendable Length	2220-6900mm
Load Capacity	40kg/m
Caster	4" swivel lockable casters
Side Links	2.5mm thickness powder coated join plates

Features

1.Rugged heavy duty self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow
2.Axle centers variable from 1-1/4" to 4" for 7" minimum package size
3.40kg per linear meter load capacity
4.Heavy duty powder coated steel side plates ensure maximum strength and durability.
5.Includes convenient end box-stop and hooks to connect additional conveyors.
6.Adjustable height achieve maximum gravity flow and create banked curves:700-1000mm as standard,800-1200mm (31-1/2" to 47-1/4") as option.
7.Simply insert galvanized telescopic leg sets into integral sockets.
8.Easy to move around on Dia 100mm(4") heavy duty lockable swivel polyurethane casters.
9.Can be made in custom lengths to suit your individual conveying application

Details Image

Easy to take a 180 degree curve

Extendable and expandable

Perfect to transport cartons

End package stop guard is available

50mm diameter galvanized steel wheels

Telescopic steel side links

Adjustable Height: 700-1000mm

Each unit with hooks to quickly joint tow units together

Mobile on 4" swivel casters with brakes

Successful Project

Company Profile

FAQ

Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service？
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.

How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
