Flexible Skate Wheel Conveyor
Home  > new category  > Flexible Skate Wheel Conveyor  >

Flexible Gravity Steel Skate Wheel Conveyor

这里可以自定义设置
Flexible Gravity Steel Skate Wheel Conveyor
B站不支持收货地址
B站不支持库存规格
Model
Gravity Conveyor
MOQ
40KG/m
Start Port
Sea freight
Certification
Customized logo (Min. Order: 5 Sets),Customized packaging (Min. Order: 5 Sets),Graphic customization (Min. Order: 5 Sets)
Lead_Time
1 - 20(Sets):15(days),21 - 50(Sets):20(days),51 - 100(Sets):30(days),>100(Sets):Negotiable(days)
Load Capacity
FGW-S6.9-600
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Power:no power
Dimension(L*W*H):L6900*W600*H700/1000 mm
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Roller, Wheel
Weight (KG):200 kg
Extendable Length:2220-6900mm
Effective Width:600mm
Adjustable Height:700-1000mm
Load Capacity:40kg/m
Wheel Diameter:50mm
Wheel Material:Galvanized Steel
Roller Center Gap:Max.120mm
Side Frame:2.5mm thickness steel plates
Supporting Legs:galvanized round steel tubes
Caster:4'' swivel lockable caster
Product Overview

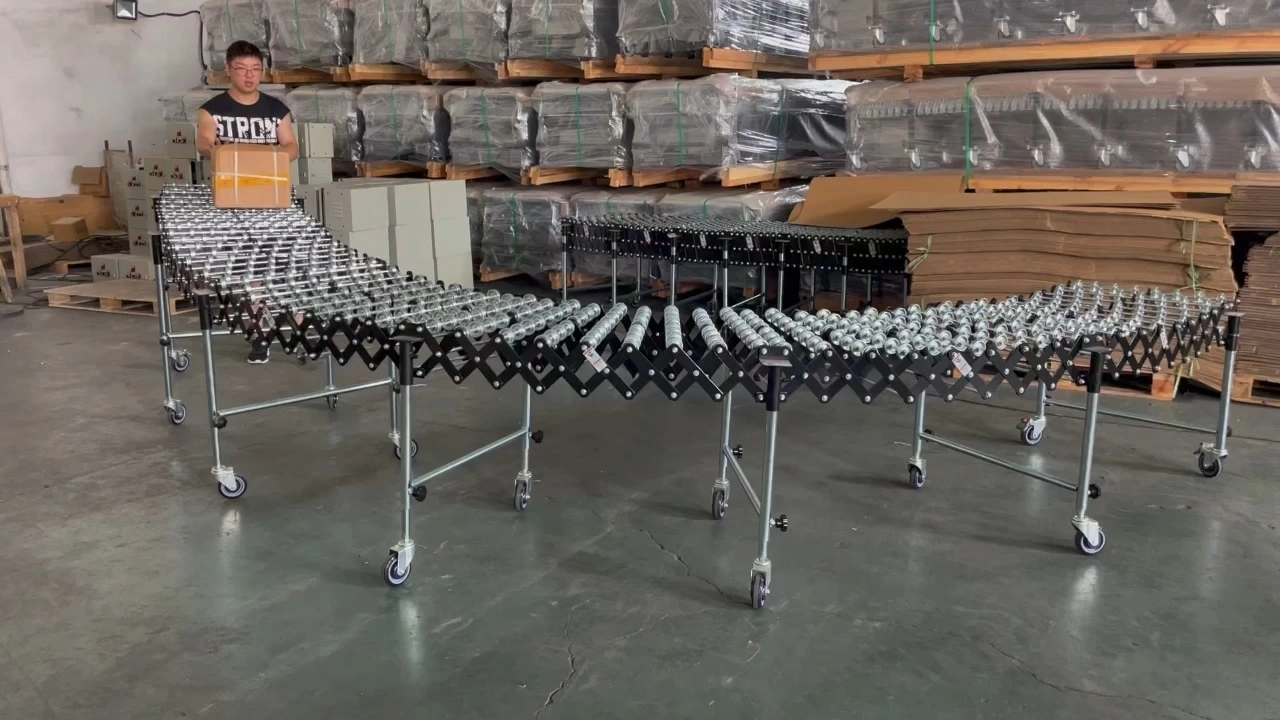

Flexible Gravity Steel Skate Wheel Conveyor

Flexible Gravity Steel Skate Wheel Conveyor is often chosen to convey small & medium sized flat-bottom items in harbor, dock,warehouse/storehouse, factory, etc.It is extendable, retractable and bendable. It can take curve flexibly even in zigzag narrowaisles. The crossed skate wheels make sure that conveyed goods will be automatically oriented and not fall down from sides. Theconveyor largely facilitates goods delivery work.
Specification Effective Width: 600mm Overall Width: 750mm Adjustable Height: 700-1000mm Extendable Length: 2220-6900mm Load Capacity: 40kg/m Caster: 4" swivel lockable casters Side Links: 2.5mm thickness powder coated join plates
50kg/m load capacity
End stop guard
high qualty galvanized steel wheels
Model List
Model
Open Length
(mm)
Close Length
(mm)
Adjustable Height
(mm)
Effective Width
(mm)
Wheel Dia
(mm)
FGW-S2.5
2500
860
700-1000
600
50
FGW-S3.6
3600
1200
700-1000
600
50
FGW-S4.7
4700
1540
700-1000
600
50
FGW-S5.8
5800
1880
700-1000
600
50
FGW-S6.9
6900
2220
700-1000
600
50
FGW-S8
8000
2560
700-1000
600
50
FGW-S9.1
9100
2900
700-1000
600
50
FGW-S10.2
10200
3240
700-1000
600
50
FGW-S11.3
11300
3580
700-1000
600
50
FGW-S12.4
12400
3920
700-1000
600
50
FGW-S13.5
13500
4260
700-1000
600
50
FGW-S14.6
14600
4600
700-1000
600
50
FGW-S15.7
15700
4940
700-1000
600
50
PS: for conveyor length more than 8m, we will take the conveyor into two or more parts for packing.This way is more safe for shipment and also help save spaces.
Details Images
Easy to take a 180 degree curve
Extendable and expandable
Perfect to transport cartons
End package stop guard is available
50mm diameter galvanized steel wheels
Telescopic steel side links
Adjustable Height: 700-1000mm
Each unit with hooks to quickly joint tow units together
Mobile on 4" swivel casters with brakes
Packing and Shipping
Take off the supporting legs first
Pack the leg kits in a separately cartons
Put the screws, spacers and handles in a small hardware cartons
Pack plastic skate wheel body in carton
Pack steel skate wheel body in cartons
Each cartons fix well with bangdages
Pack plastic skate wheel body in carton
Pack steel skate wheel body in cartons
Each cartons fix well with bangdages
How to set up?
How to choose flexible conveyor model?
● The flexible roller conveyors have a bigger load capacity than the standard flexible skate wheel conveyor.
● Withthe same length,width,height,the standard flexible skate wheel conveyor is more economical than gravity roller units and makes the goods moves smoother.
● Double roller conveyor type makes the goods move smoother and more fluent than the single roller type.
● Any items with an uneven or open buttom,or with a rim on the bottom should be transported on rollers.
● Conveyed items can be wider than the conveyor.Extra wide items like plywood or sheet materials can be moved if carefully centered.
● Typically,3 rollers or 3 skate wheel lines must be beneath the load at any particular time for easy rolling.
Flexible Gravity Steel Roller Conveyor
Flexible Steel Skate Wheel Conveyor
Flexible Powered Roller Conveyor-O belt
Flexible Double PVC Roller Conveyor
Flexible Plastic Skate Wheel Conveyor
FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
