Flexible and extendable gravity wheel roller unloading conveyor-YiFan Conveyor

Overview

Quick Details

Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, E-business Warehouse, Distribution Center, Store, Third Party Logistics, Packaging Company

Showroom Location:None

Condition:New

Material:Plastic

Material Feature:Oil Resistant

Structure:Conveyor System

Place of Origin:NINGBO,China

Brand Name:YiFan

Voltage:No power

Power:other

Dimension(L*W*H):Variable

Warranty:1 Year

Width or Diameter:600mm

Machinery Test Report:Provided

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2019

Warranty of core components:1 Year

Core Components:Motor, Bearing

Weight (KG):300 kg

Adjustable Length:2200-7500mm

Height:710-1120mm

Load Capacity:40kg/m

Width:600mm

Wheel Material:plastic

Frame Material:steel

Usage:unloading carton

After-sales Service Provided:Free spare parts

Product Overview

Flexible Gravity Skate Wheel Conveyor

Flexible Gravity Skate Wheel Conveyor is often chosen to convey small & medium sized flat-bottom items in harbor, dock,warehouse/storehouse, factory, etc.It is extendable, retractable and bendable. It can take curve flexibly even in zigzag narrowaisles. The crossed skate wheels make sure that conveyed goods will be automatically oriented and not fall down from sides. Theconveyor largely facilitates goods delivery work.

Specification Effective Width: 600mm Adjustable Height: 710-112 Extendable Length: 2200-7500mm Load Capacity: 40kg/m Caster: 4" swivel lockable casters Side Links: 2.5mm thickness curved join plates

Drawing

Details Image

Plastic Wheels

Use high free 49mm skate wheels

Joint Buckle

Each conveyor with 2 collection buckles at the end

Curved side plates

Adopt 2.5mm curved side links with good load

Adjustable Legs

Adjustable conveyor height: 28-44 inches

Three Optional Colors

OPTION ONE

Plastic black wheels and blue legs

OPTION TWO

Steel wheels and black legs

OPTION THREE

Steel wheels and blue legs

Packing and Shipping

The legs are packed in a independent cartons

One section body with one carton

Finished cartons with bandagebandage

Take off the supporting legs first

Pack the leg kits in a separately cartons

Each cartons with plastic bag

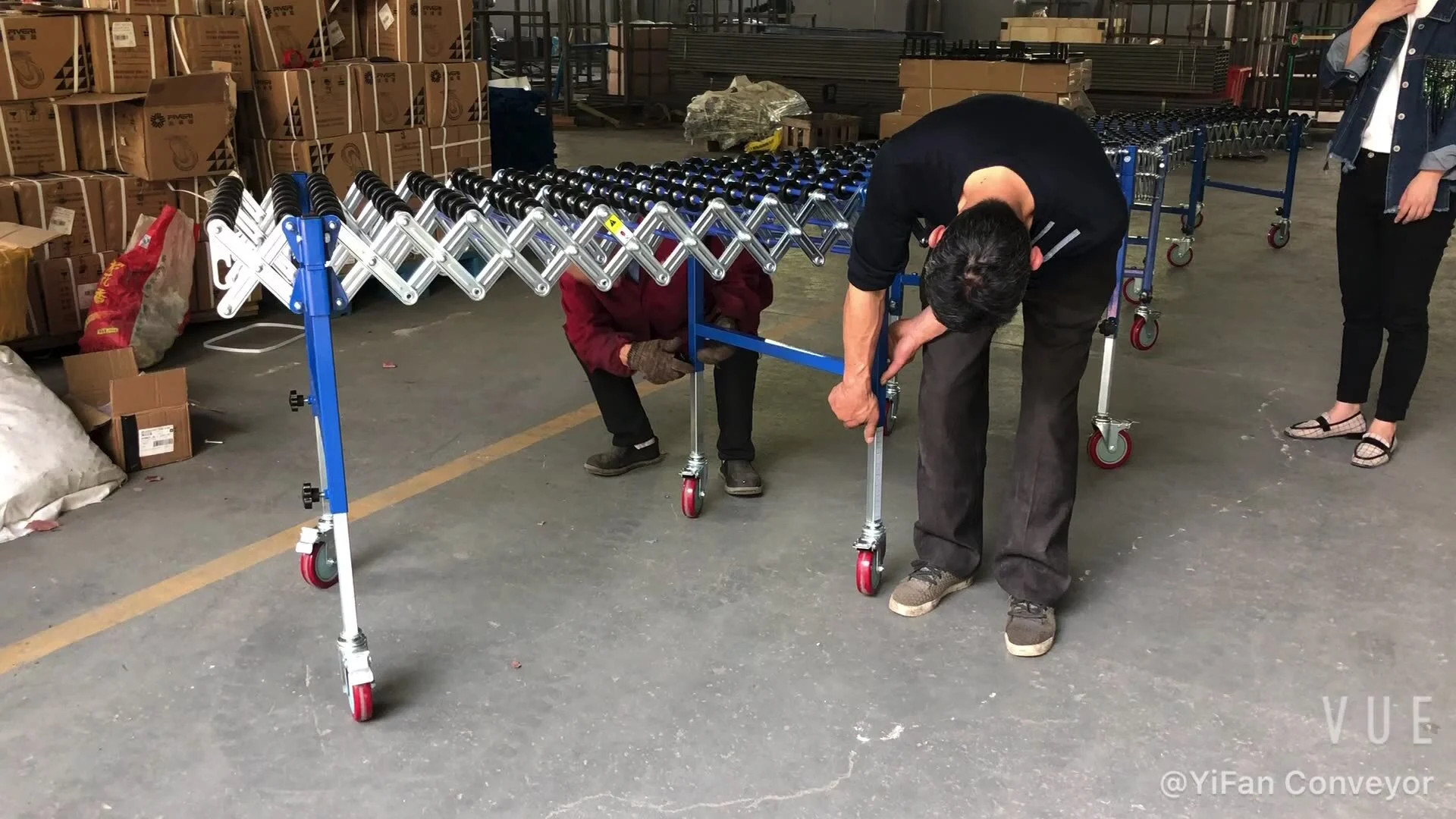

How to set up?

How to choose flexible conveyor model?

● The flexible roller conveyors have a bigger load capacity than the standard flexible skate wheel conveyor.
● Withthe same length,width,height,the standard flexible skate wheel conveyor is more economical than gravity roller units and makes the goods moves smoother.
● Double roller conveyor type makes the goods move smoother and more fluent than the single roller type.
● Any items with an uneven or open buttom,or with a rim on the bottom should be transported on rollers.
● Conveyed items can be wider than the conveyor.Extra wide items like plywood or sheet materials can be moved if carefully centered.
● Typically,3 rollers or 3 skate wheel lines must be beneath the load at any particular time for easy rolling.

Flexible Powered Roller Conveyor-V belt

Flexible Gravity Steel Roller Conveyor

Flexible Steel Skate Wheel Conveyor

Flexible Powered Roller Conveyor-O belt

Flexible Double PVC Roller Conveyor

Flexible Plastic Skate Wheel Conveyor

Company Profile

FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

Ningbo YiFan Conveyor Equipment Co.，Ltd's conveyor manufacturer is SGS compliant. The product is available in a vast range of width and models. Ningbo YiFan Conveyor Equipment Co.，Ltd pays high attention to potential points that may lead to quality defects and has strengthened supervision. The product is available in a vast range of width and models.
