    Extendable/Telescopic Belt Conveyor with Drop Nose Lift Up and Down 6

    MTBC-4S-6/12-800

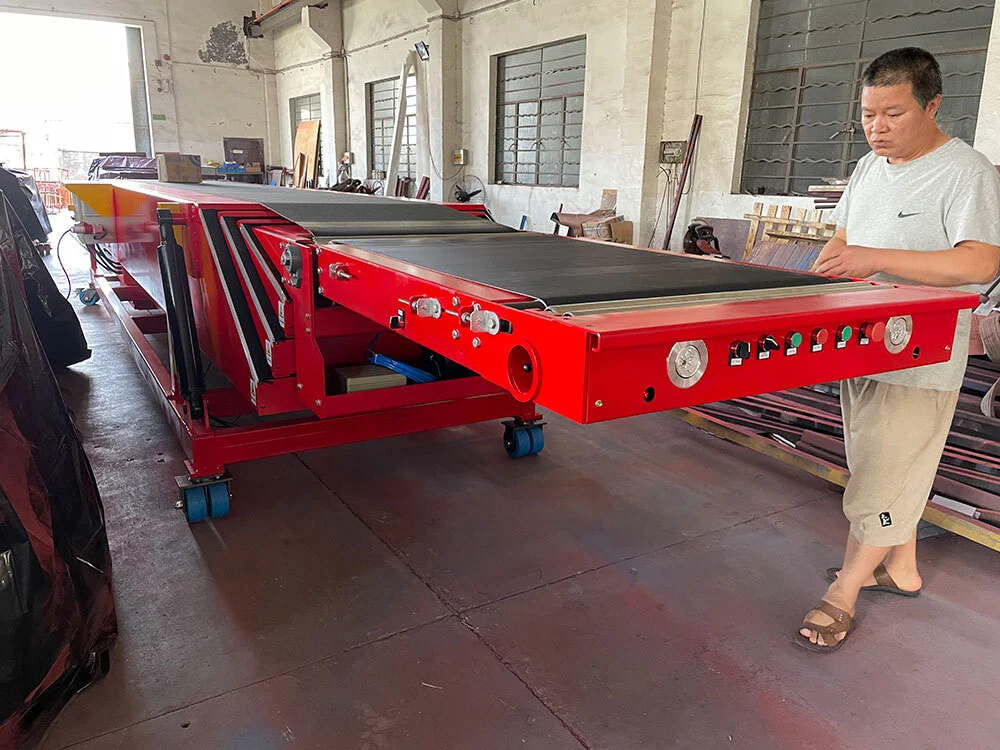

    TELESCOPIC BELT CONVEYOR WITH OPERATOR PLATFORM

    Telescopic Belt Conveyor is automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.

    With 1.5m small belt conveyor like a drop nose, it greatly help workers to lift the cargo to an higher level and save loading time.Operator can control belt runing forward/backward,conveyor rise up and down on the head panel.The drop nose can only go up and down.We can also make it go left and right if required.

    PRODUCT PARAMETERS

    Extendable/Telescopic Belt Conveyor with Drop Nose Lift Up and Down 7

    40ft Container Loading Unloading Telescopic Belt Conveyor with Adjustable Drop Nose

    Fixed Length

    6m

    Extension Length

    12m

    Total Length

    18m

    Belt Spec

    800mm width PVK belt

    Belt Top Height

    1190mm, can lift up to 2300mm

    Operation Direction

    forward & reverse

    Load Capacity

    50kg/m

    Belt Driven Motor

    3.0kw, SEW

    Telescopic Motor

    0.75kw, SEW

    Hydraulic Power Pack

    1.5 kw

    Machine Total Power

    5.25 kw

    Main Electric ComponentsSchneider

    Voltage

    380V, three phase, 50Hz

    SHOW DETAILS

    Extendable/Telescopic Belt Conveyor with Drop Nose Lift Up and Down 8
    General Control Box: belt forward/reverse, lift up/down, extend/retract,emergency stop
    Extendable/Telescopic Belt Conveyor with Drop Nose Lift Up and Down 9
    Front Control Panel: belt forward/reverse, lift up/down
    Extendable/Telescopic Belt Conveyor with Drop Nose Lift Up and Down 10
    Telescopic frame with brushes to avoid small items fall in
    Extendable/Telescopic Belt Conveyor with Drop Nose Lift Up and Down 11
    Heavy duty universal castors

    CUSTOMER CASE

    Application 1

    Unloading cartons/boxes from trucks to warehouse

    Extendable/Telescopic Belt Conveyor with Drop Nose Lift Up and Down 12
    Extendable/Telescopic Belt Conveyor with Drop Nose Lift Up and Down 13
    Extendable/Telescopic Belt Conveyor with Drop Nose Lift Up and Down 14
