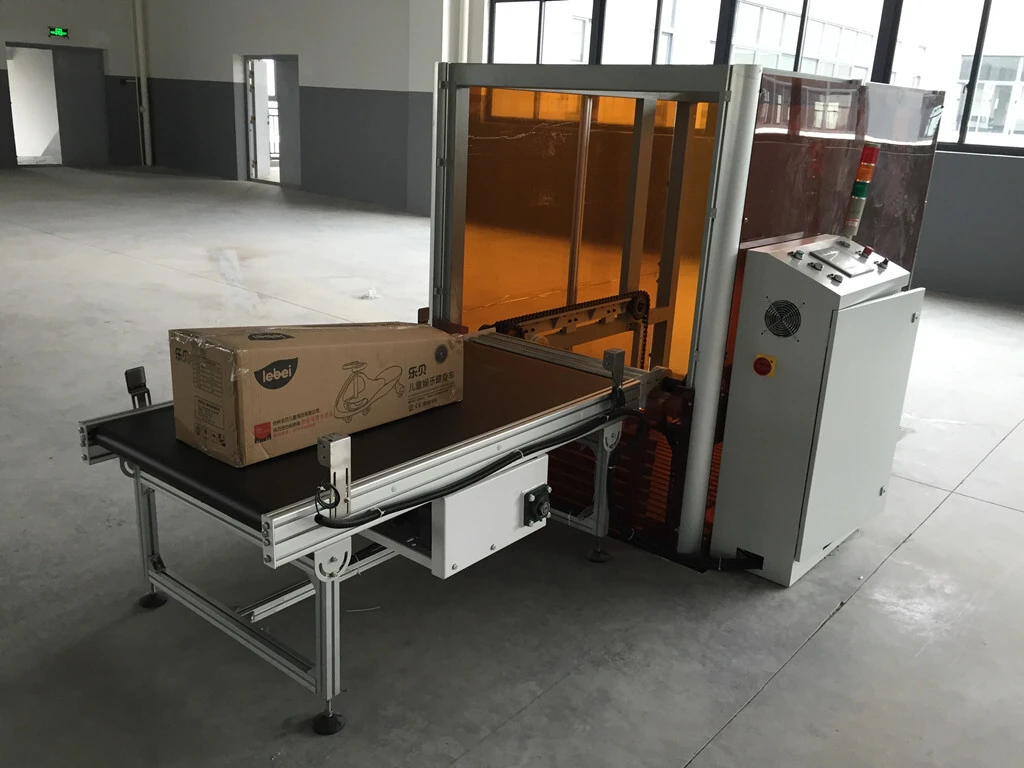

Z Type Vertical Lifting Conveyor
Z Type Vertical Lifting Conveyor is mainly applied to convey box-shaped items continuously vertically(min. feasible box bottom size:350mm*350mm).Based on its input & output conveyors’ direction, it can be sorted as two types: Type C & Type Z. The conveyor boasts:1.No wasted time from reverting pallets, high efficiency;2.Continuous working in bidirectional ways;3.Fully automatic with input and output conveyors;4Compact in size, either indoors or outdoors.
PRODUCT PARAMETERS
Vertical Lift Conveyor is mainly applied to convey box-shaped items continuously & vertically. Bottom of boxes at least to be 350mm*350mm.Based on its input and output direction.
There are two types :Type C & Type Z
Model | Min Lift Height | Max.Lifting Speed | Beat | Max.Load | Goods |
Type C | 1500mm | 30m/min | Max.10pcs/min | 500kg | Cartons/boxes/pallets |
Type Z | 1000mm | 40m/min | Max.30pcs/min | 2000kg | Cartons/boxes/pallets |
Features:
1.High efficiency:no wasted time from reverting pallets,high efficiency.
2.Continuous working in two ways.
3.Fully automatic with input and out put conveyors
4.Compact in size, either indoors or outdoors
