2025 New Product Flexible Motorized Aluminum Roller Conveyor(Easy to replace rollers)

Start Port:

Ningbo/Shanghai

Payment:

T/T

MOQ:

1 set

Model:

FPR-RV

Delivery time:

15-20 days

Certification:

Main conveyor components with CE

Inquiry

Write a Review

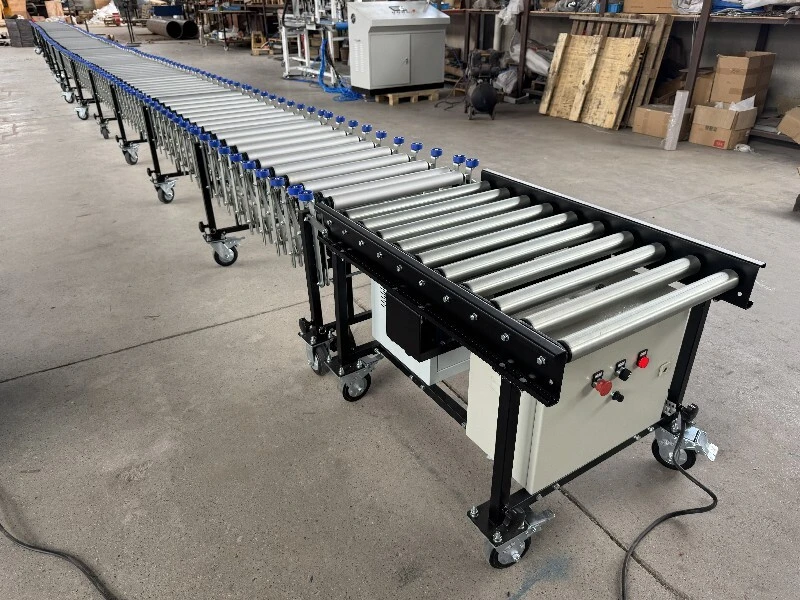

Flexible Motorized Aluminum Roller Conveyor

V BELT FLEXIBLE MOTORIZED RUBBER COATED ROLLER CONVEYOR

V Belt Flexible Powered Rubber Coated Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height. Having enough power supply by one mini motor per section, it is well qualified to intensively transport goods especially with flat bottom in the warehouse/storehouse, workshop, factory, harbor, dock, etc. In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line. It satisfies the easy, quick and efficient goods delivery.

TECHNICAL PARAMETERS

Belt	high quality V belt
Roller	dia 55mm rubber coated roller, Max. gap138mm center to center
Motor	90W/120W electronic governor motor
Frame	5mm thickness galvanized curved join plates with better load
Leg	32×32 powder coated tube with 25×25 galvanized tube inside
Caster	5" high quality swivel lockable polyurethane casters
Control Box	Forward/Stop/Reverse, Emergency Stop, Speed Knob
Frequency Inverter	Delta

MODEL LIST

Model	Open Length (mm)	Close Length (mm)	Rpller Width (mm)	Adjustable Height (mm)	Variable Speed (m/min)	Max.Load (kg/㎡)	Motor Power (w)
FPR-RV-4.8	4800	2200	600/800	700-1000	10-20	100	450
FPR-RV-6	6000	2750	600/800	700-1000	10-20	100	540
FPR-RV-7.2	7200	3300	600/800	700-1000	10-20	100	630
FPR-RV-8.4	8400	3850	600/800	700-1000	10-20	100	720
FPR-RV-9.6	9600	4400	600/800	700-1000	10-20	100	810
FPR-RV-10.8	10800	4950	600/800	700-1000	10-20	100	900
FPR-RV-12	12000	5500	600/800	700-1000	10-20	100	990

SHOW DETAILS

Aluminum rollers with light weight

Control box with Forward_Stop_Reverse and Emergenc

Driven by durable V belt

Each leg with one motor

Mobile on rubber wheels

More easy to replace the rollers

Package end stop sensor

Side wheels can be removed

Two units joint by airplug

With two side guide wheels
